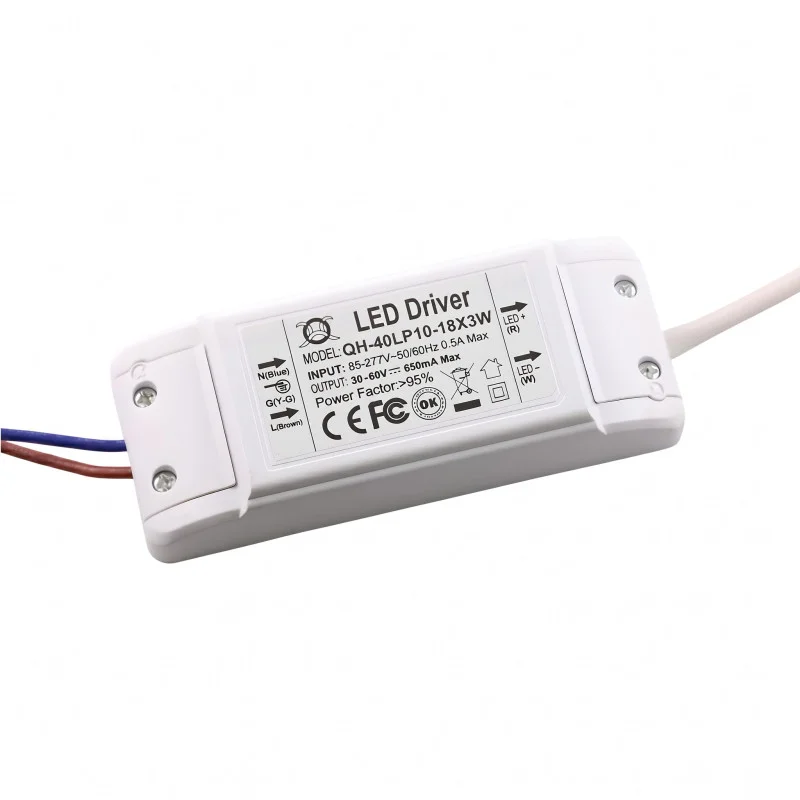

The constant current LED power supply is designed to power setups of 1018x 3W LEDs. It serves as an external LED driver for lighting applications where a stabilized current of 600 mA is required. Its design is suitable for integration into luminaires and other lighting assemblies with a matching output voltage range.
Technical Specifications
Product type: Constant current LED driver
Designed for: 1018x 3W LEDs
Input voltage: 85277 V AC
Input frequency: 50/60 Hz
Output voltage: 3060 V DC
Output current: 600 mA ±5%
Dimensions: 115 x 45 x 28 mm
Housing material: Plastic
Design type: External driver
Product markings: CE, FCC
Features and Functions
Constant current output for powering high-power LEDs.
Wide AC input voltage range for use in various power systems.
Separate input wires for AC power and output wires for connecting the LED load.
Plastic housing design with screwed end caps.
Designed for use with LED modules or assemblies that match the output current and voltage range of the driver.
Ideal For
Powering high-power LEDs and COB LED modules.
Downlights and recessed lighting.
LED panels and other internal lighting assemblies with constant current power.
Replacement or service use in compatible LED luminaires.
Package Contents
1x LED driver 600 mA for 1018x 3W LEDs
Why Choose This Product
Clearly defined 600 mA output current for compatible LED loads.
Output voltage range of 3060 V for multi-cell LED assemblies.
External design makes it easy to integrate into a luminaire or replace the original driver.
Technical specifications are clearly marked directly on the device label.
Installation and Operating Instructions
Before connecting, verify that the required current of the LED module matches the 600 mA output and that the operating voltage of the load is within the 3060 V DC range.
Connect the input wires to the AC 85277 V mains power supply according to the wire markings.
Connect the output wires to the LED load with the correct polarity.
Perform the installation to ensure mechanical fastening and adequate heat dissipation within the luminaire.
Do not connect the driver to a voltage source designed for constant voltage LEDs.
Safety Warnings
The device operates with AC 85277 V mains voltage. There is a risk of electric shock during installation.
Perform installation and wiring only when the power supply is disconnected.
Incorrect output wiring or connection of an incompatible LED load may result in damage to the driver or the LED module.
The product requires professional installation in accordance with electrical equipment regulations.
Prevent short circuits on the output and do not operate the device with damaged wire insulation or housing.
