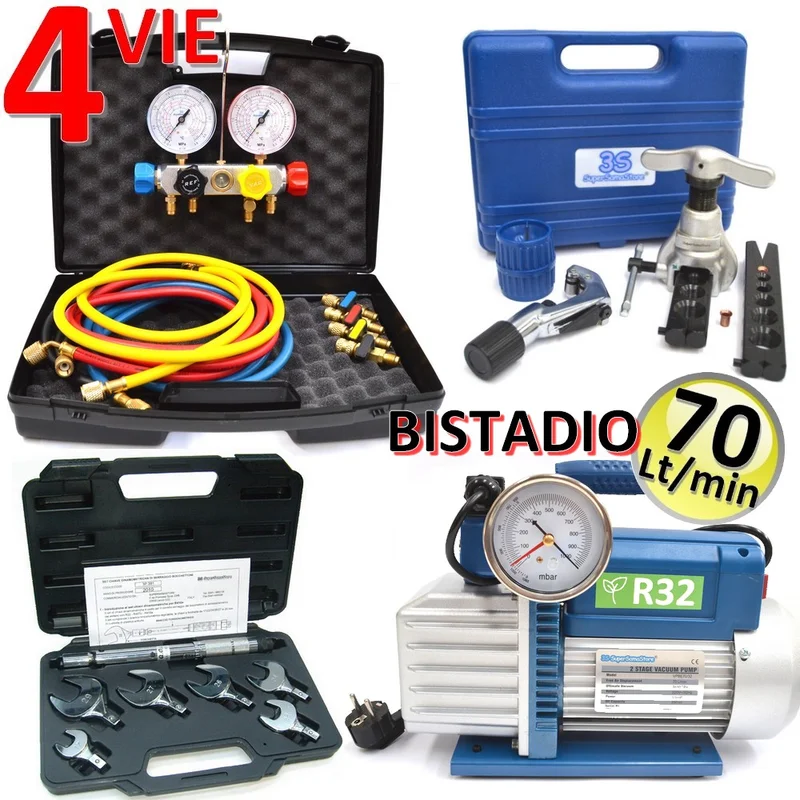

Two-Stage Vacuum Pump 70 Liters
Also approved for R32 gas
+
4-Way Manometer Set
With scales for R410A – R32 – R407C – R134A
+
Cartridge Press with
Friction, Deburring Tool, and Pipe Cutter
+
Torque Wrench
Features:
Vacuum Pump:
Two-stage model with 70 liters per minute specifically for R32 and R1234YF gas evacuation according to DIN 8975.
This pump is equipped with special fire-resistant insulation on the electrical components, making it certified to protect against potential explosions or deflagrations due to the flammability of both R32 and R1234YF gases.
The pump can also be used for systems with other refrigerants such as R410A / R407C / R404A / R22, etc.
Includes a vacuum gauge to visualize the vacuum process.
Equipped with an electric valve to prevent oil backflow in case of a power failure.
On/off switch.
Oil level indicator.
1 pack of oil included.
Power cable with Schuko plug.
Ergonomic carrying handle.
Technical Specifications:
Two-stage model.
Suction capacity in liters per minute: 70 2.5 CFM
Motor power: 1/3 HP
Power supply: 220V – 50Hz
Final vacuum: 3×10-1 Pa – 0.003 mbar
Oil capacity in the pump: 310 ml
Dimensions: 320x160x240 mm
Weight: 9.30 kg
Connection: 1/4′ SAE
CE certified
Manometer Set:
Manometer group with 4 valves in blue, black, yellow, and red on an aluminum housing to control the 4 connections.
Universal with scales for gases R410A / R32 / R407C / R134A.
Hanging hook for the manometer.
Four long hoses, 1500 mm long, in blue, black, yellow, and red, with 5/16-SAE connections on both ends, one equipped with a shut-off valve.
2 valve connections for R32 and R410A, male, 5/16 SAE, with shut-off valve for connection to the floating ends of the hoses for independent closures.
2 valve connections for R407C and R134A, male, 5/16 SAE, female, 1/4 SAE, with shut-off valve for connection to the floating ends of the hoses for independent closures.
1 plastic case for the manometer set.
Cartelier:
Fully metallic cartelier and dies.
Dies in inches for pipes with diameters 5/16 – 1/4 – 3/8 – 1/2 – 5/8 – 3/4.
Metric dies for pipes with diameters 6 – 8 – 10 – 12 – 16 – 19 (mm).
With friction coupling, automatic release after completing the crimping process.
Special eccentric spiral drill tip for precise crimping.
Pipe cutter for 4-28 mm with retractable deburring tool.
Pipe deburring tool with steel blades for internal and external deburring.
Torque Wrench:
The wrench set is used for correctly tightening the coupling nuts in systems with R22, R410A, R407C, R134A, etc.
The set includes the adjustable torque wrench arm.
Torque range from 10 to 75 Nm.
Set includes 6 wrenches for diameters 17-22-24-26-27-29, delivered in a case.
Product Code: KT.PROF70R32
