Descrizione

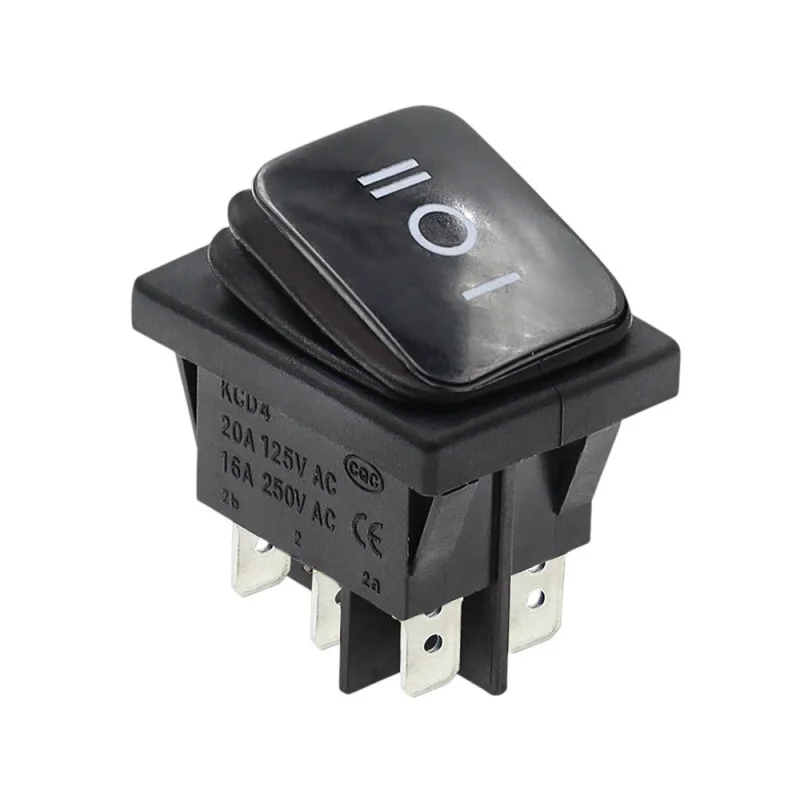

The rectangular rocker switch type KCD4 for panel mounting is designed for switching circuits in three positions (I / O / II). Thanks to the IP65 protection, it is also suitable for applications with increased requirements for protection against dust and splashing water.
Technical specifications
Type: KCD4
Function: ON-OFF-ON (position I / O / II)
Rated load: 16 A at 250 V AC
Max. voltage: 250 V
Mounting hole: 30 x 22 mm
Dimensions: 31 x 25 x 35 mm
Installation height (required depth in the panel): 28 mm
Operating temperature: -25 to +80 °C
Protection: IP65
Connector: 6.3 mm Faston
Number of pins: 6
Design: black
Functions and features
Three-position design for switching between two circuits with a center off position
Position locking for stable switching state setting
Cradle pictograms: I / O / II
Panel mounting in a rectangular cutout
Terminals for connection using 6.3 mm Faston flat connectors
IP65 protection for use in environments with increased dust or splashing water
Ideal for
Control panels and switchboard applications
Industrial equipment and service control
Power and switching circuits requiring three-position control
Applications requiring IP65 protection on the front of the panel
Package contents
Rocker switch KCD4
Why choose this product?
Clearly defined ON-OFF-ON function with I/O/II marking
Standardized panel mounting in a 30 x 22 mm hole
Easy connection via 6.3 mm Faston
IP65 protection for more demanding operating conditions
Installation and operating instructions
Before installation, verify the mounting hole size of 30 x 22 mm and the required depth of space in the panel of 28 mm.
For connections, use the corresponding 6.3 mm Faston connectors and wires sized for the current load of the application.
Adapt the wiring to the specific ON-OFF-ON function according to the device diagram; we recommend verifying the pin layout before commissioning.
Safety notice
The product is designed to operate with hazardous voltage (up to 250 V AC). Installation and servicing should only be carried out with the power disconnected and by a suitably qualified person.
Follow the requirements for fusing and sizing wires according to applicable standards and parameters of your application.
