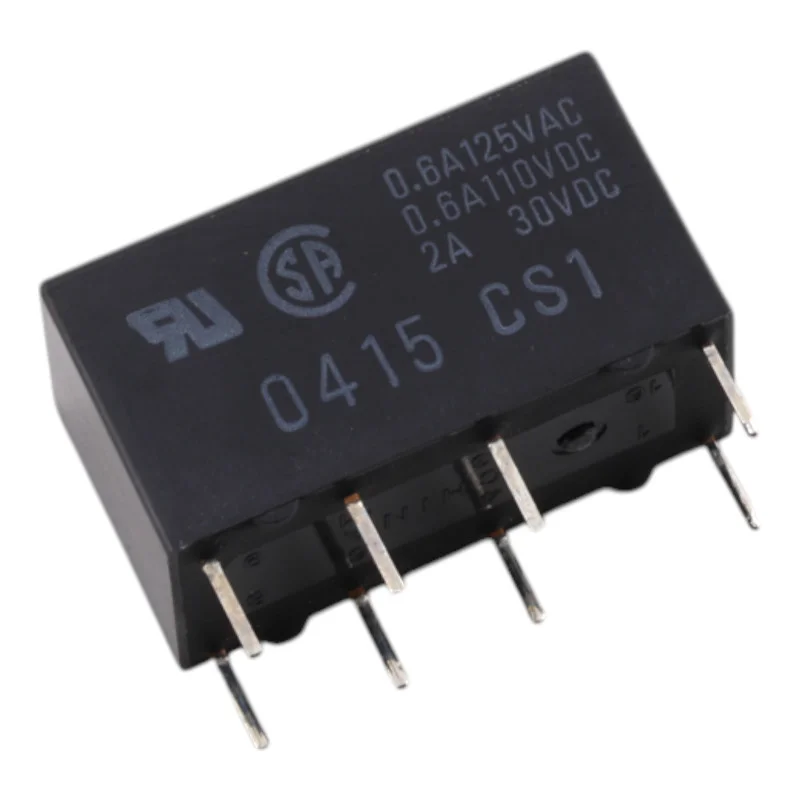

The Omron G5V-2 miniature signal relay in standard design is designed for switching low to medium loads in control and automation circuits. Thanks to the DPDT configuration (2× changeover contact), it is suitable for switching two independent signal branches or for galvanic isolation of the control and power parts.
Technical specifications
Model series: G5V-2
Design: standard
Coil voltage rating: 12 V DC
Contact configuration: DPDT (2c), 2× changeover
Rated contact load (resistive load): 0.5 A at 125 VAC; 2 A at 30 VDC
Rated continuous contact current: 2 A
Maximum switching voltage: 125 VAC, 125 VDC
Maximum switching current: 2 A
Coil current rating (12V, standard): 41.7mA
Coil resistance (12 V, standard): 288
Coil power consumption (standard): 500 mW
Switching voltage: max. 75% of rated voltage (at 23 °C)
Breakdown voltage: min. 5% of rated voltage (at 23 °C)
Maximum coil voltage: 120% of rated voltage (at 23°C)
Contact resistance (initial value, standard): max. 50 m
Switching time: max. 7 ms
Opening time: max. 3 ms
Insulation resistance: min. 1000 M (at 500 VDC)
Dielectric strength between coil and contacts: 1000 VAC, 50/60 Hz for 1 min
Dielectric strength between contacts: 1000 VAC, 50/60 Hz for 1 min
Impulse withstand voltage: 1500 V (10 x 160 µs)
Mechanical life: min. 15,000,000 operations
Electrical life (standard): min. 100,000 operations
Ambient operating temperature (free of frost and condensation, standard): -25 °C to +65 °C
Operating ambient humidity: 5% to 85%
Weight: 5g
Functions and features
DPDT contact arrangement for switching two circuits
Suitable for switching resistive loads in both AC and DC circuits within the specified limits
Fast response for control and signal applications
Galvanic isolation between coil and contacts
Ideal for
Control and automation systems
Switching signals and smaller loads in industrial electronics
Interface between logic (12 V DC) and switching circuit
Measuring and testing devices
Package contents
Relay G5V-2, 12 V DC, standard version
Why choose this product?
Clearly defined switching parameters for both AC and DC loads
DPDT design allows universal use in switching applications
Verified electrical insulation parameters and service life values
Installation and operating instructions
When designing, consider the type of load (resistive/inductive) and use appropriate protection elements (e.g. RC element, varistor, diode for DC coils in the external circuit).
Observe the nominal coil voltage of 12 V DC and the maximum coil voltage limits.
For long-term reliable operation, verify the switching conditions in a real application (current, voltage, switching frequency, temperature).
Safety notice
Hazardous voltages may be present when switching 125 VAC or 125 VDC. Perform installation and service only with power disconnected and in accordance with applicable standards.
Ensure sufficient insulation distances on the PCB and appropriate shielding according to application requirements.
