Descrizione

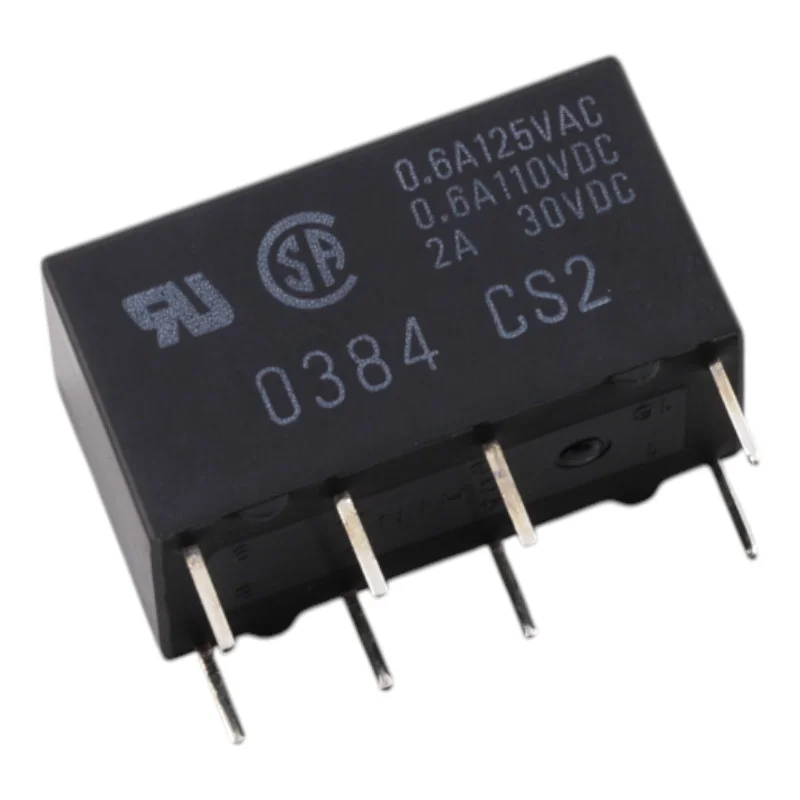

The OMRON G5V-2 is a miniature PCB signal relay with a 5 V DC coil and two changeover contacts (DPDT, 2 Form C). It is suitable for switching low to medium loads in control and signal circuits where defined electrical strength and repeatable switching parameters are required.
Technical specifications
Model series: G5V-2 (standard version)
Coil voltage: 5 V DC
Contact arrangement: DPDT (2c, 2 Form C)
Contact type: bifurcated cross contact
Contact material: Ag + Au alloy
Rated load (resistive): 0.5 A at 125 VAC; 2 A at 30 VDC
Rated continuous contact current: 2 A
Maximum switching voltage: 125 VAC, 125 VDC
Maximum switching current: 2 A
Contact resistance: max. 50 m
Switching time: max. 7 ms
Opening time: max. 3 ms
Insulation resistance: min. 1000 M (at 500 VDC)
Dielectric strength: between coil and contacts 1000 VAC (50/60 Hz, 1 min); between contacts 750 VAC (50/60 Hz, 1 min); between contacts of different polarity 1000 VAC (50/60 Hz, 1 min)
Impulse withstand voltage: 1500 V (10 x 160 µs)
Mechanical life: min. 15,000,000 switching cycles
Electrical life: min. 100,000 switching operations (at 1800 switching operations/h)
Ambient operating temperature: -25°C to 65°C (no icing or condensation)
Operating ambient humidity: 5% to 85%
Weight: approximately 5 g
Functions and features
Two changeover contacts for simultaneous switching of two independent branches
Suitable for signal and control applications requiring stable insulation parameters
Fast response (typically in the order of milliseconds) for common switching tasks
Au-doped contacts for more reliable switching of low signal levels within specifications
Ideal for
Control and signal circuits in industrial electronics
Switching signal paths, logic levels and low-voltage loads
Automation, measuring technology and laboratory products
Switching DC loads up to 30 VDC within rated values
Package contents
OMRON G5V-2 relay, 5 V DC coil
Why choose this product?
Proven DPDT (2 Form C) design for universal use in signal and control circuits
Clearly defined switching and insulation parameters for the design of reliable devices
Standard version suitable for common applications with 5 V DC coil
Installation and operating instructions
When designing a printed circuit board, observe the recommended insulation distances and track widths according to the switching voltage and current.
To achieve the declared service life, use the relay within the rated values for the given load type (resistive/inductive)
For inductive loads, consider using appropriate suppression (e.g. RC element, diode, varistor) depending on the type of power supply and load.
Safety notice
The relay is capable of switching voltages up to 125 VAC / 125 VDC; when working with hazardous voltages, ensure adequate shielding, protection and compliance with safety standards
Only perform installation and service when the power supply is disconnected.
