Descrizione

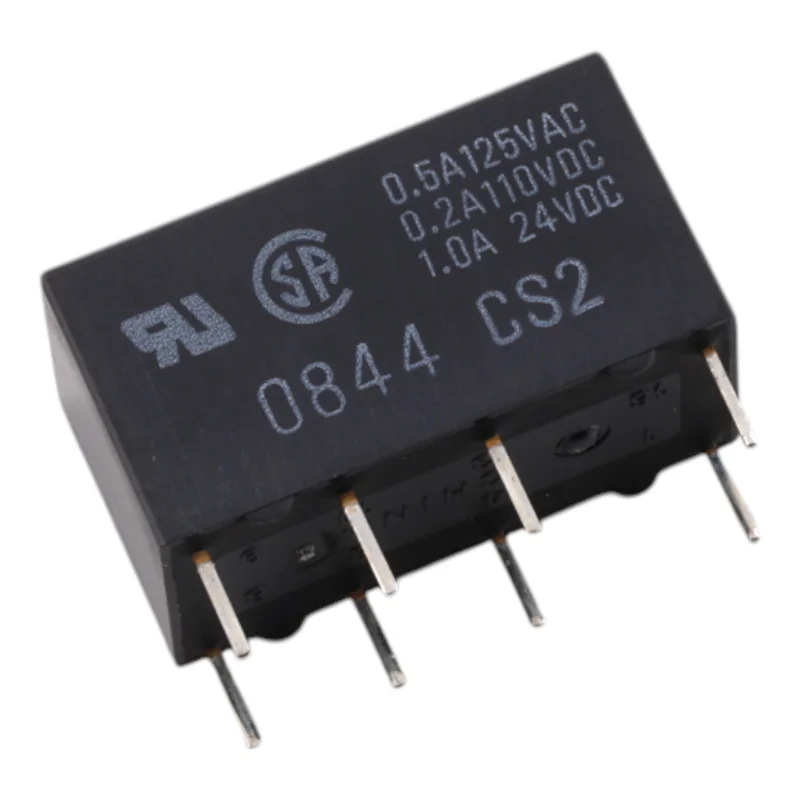

Omron G5V-2-H1 is a miniature signal relay in the High-sensitivity version, designed for switching low to medium power in control and measurement circuits. Thanks to the 12 V DC coil and DPDT (2c) contacts, it is suitable for applications where reliable galvanic isolation and switching of two independent circuits is required.
Technical specifications
Model: G5V-2-H1
Contact type: DPDT (2c)
Coil voltage rating: 12 V DC
Nominal coil current: 12.5 mA
Coil resistance: 960
Coil consumption: approximately 150 mW
Rated contact load (resistive): 0.5 A at 125 V AC; 1 A at 24 V DC
Maximum switching voltage: 125 V AC, 125 V DC
Maximum switching current: 1 A
Contact material: Ag + Au alloy
Contact resistance (High-sensitivity): 100 m max.
Switching time: 7 ms max.
Opening time: 3 ms max.
Insulation resistance: 1000 M min. (at 500 V DC)
Dielectric strength between coil and contacts: 1000 V AC, 50/60 Hz for 1 min
Dielectric strength between contacts of the same polarity (High-sensitivity): 500 V AC, 50/60 Hz for 1 min
Dielectric strength between contacts of different polarity: 1000 V AC, 50/60 Hz for 1 min
Impulse withstand voltage: 1500 V (10 x 160 µs)
Ambient operating temperature: -25 °C to +70 °C (without icing and condensation)
Weight: approximately 5 g
Functions and features
High-sensitivity version for applications with limited coil excitation power
Double changeover contacts (2c) for simultaneous switching or switching of two circuits
Bifurcated crossbar arrangement for stable contact at low signals
Contacts with Ag + Au alloy for switching signals and low currents
Galvanic isolation between coil and contacts
Ideal for
Control and automation modules
Measurement technology and signal paths
Switching outputs in low-voltage DC circuits
Switching resistive loads within the specified limits
Package contents
1 pc Omron relay G5V-2-H1, coil 12 V DC
Why choose this product?
Proven signal relay design with DPDT (2c) contacts
Parameters suitable for precise and low-energy control applications
Defined switching limits for both AC and DC loads including a maximum switching voltage of 125 V
Installation and operating instructions
When designing, consider the type of load (resistive/inductive) and use appropriate protective elements (e.g. RC element, diode, varistor) to limit overvoltage
Observe the nominal coil voltage of 12 V DC and ensure a stable power supply including correct polarity if relevant to your wiring
For long-term reliability, do not exceed the maximum switching voltage and current and verify temperature rise under real-world conditions.
Safety notice
The relay can switch voltages up to 125 V AC/DC; working with dangerous voltages requires professional competence and compliance with applicable standards
Before handling, disconnect the device from the power supply and verify that there is no voltage.
Ensure sufficient insulation distances and shielding according to the specific application
