Descrizione

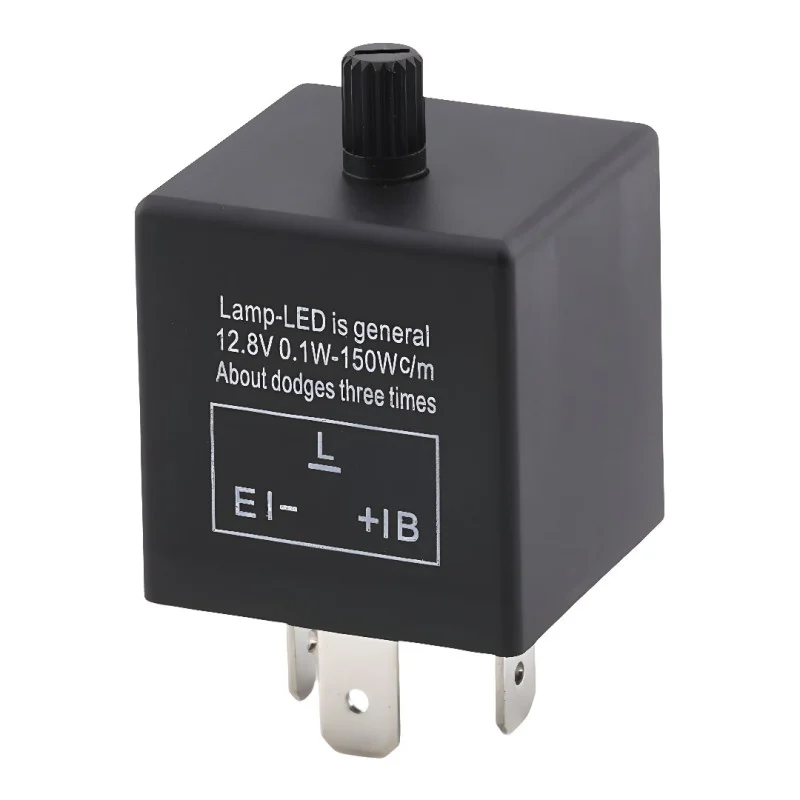

Electronic interrupter for LED turn signals with continuous frequency adjustment using the upper trimmer. Stabilizes flickering and eliminates rapid flickering after replacing classic bulbs with LEDs.
Technical specifications
Power supply: 12 V DC or 24 V DC (depending on variant)
Load: 0.1-150 W
Adjustable frequency: approximately 60-120 cycles/min
Number of pins: 3 (E, L, B+)
Body dimensions: 30.5 × 30.5 × 31 mm
Height with controller: approx. 55 mm
Operating temperature: 40 °C to +80 °C
Housing: ABS plastic, plug-in mounting
Functions and features
Eliminates rapid flashing of LED turn signals
Continuous adjustment of the flashing speed with a rotary trimmer
Compatible with LED, halogen and classic bulbs
Stable frequency independent of load
Easy Plug & Play installation
Ideal for
Motorcycles, scooters and quads
Passenger and commercial vehicles
Replacement of older mechanical circuit breakers
Package contents
1 × relay interrupter CF14KT JL-02 (selected 12 V or 24 V variant)
Why choose this product?
Universal use for 12 V and 24 V systems
Frequency adjustment for perfect synchronization
Reliable solution without the need for additional resistors
Durable design and long service life
