Rotalock welding valve ODS 22 mm 7/8 – 13/4 x 12 for refrigeration systems-Spedizione veloce

Descrizione

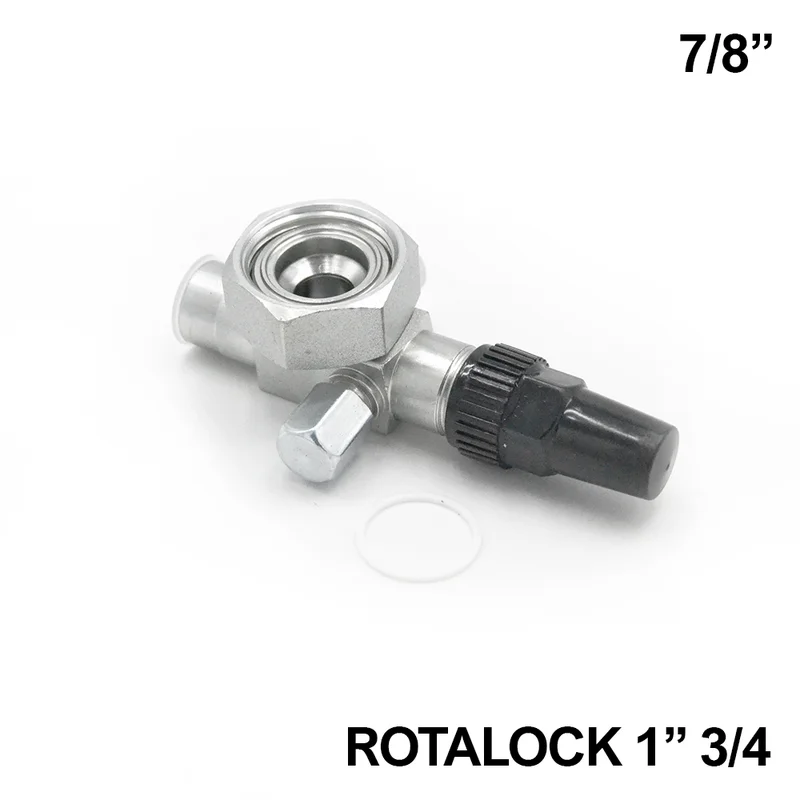

VS07 – Rotalock solder valve with ODS connection 22 mm 7/8 – 13/4 x 12 fitting
for refrigeration and air conditioning systems, with teflon gasket
Rotalock valves are used in the refrigerant circuits of refrigeration systems. These valves serve multiple functions, from closing the valve to controlling the mass flow. The Rotalock valve features steel connections.
Additionally, the brazing process, carried out in a furnace, ensures leak-free performance. These valves offer a high KV factor thanks to optimized design and the best use of materials. The service valve includes several adjustment positions depending on customer requirements.

Specifications:
ODS connection: 7/8 (22 mm);
Rotalock fitting: 13/4;
Width: 170 mm;
Height: 60 mm;
Diameter: Ø 26 mm;
Wrench size: CH 50 mm.
Teflon gasket INCLUDED

codice prodotto: VS07
