Descrizione

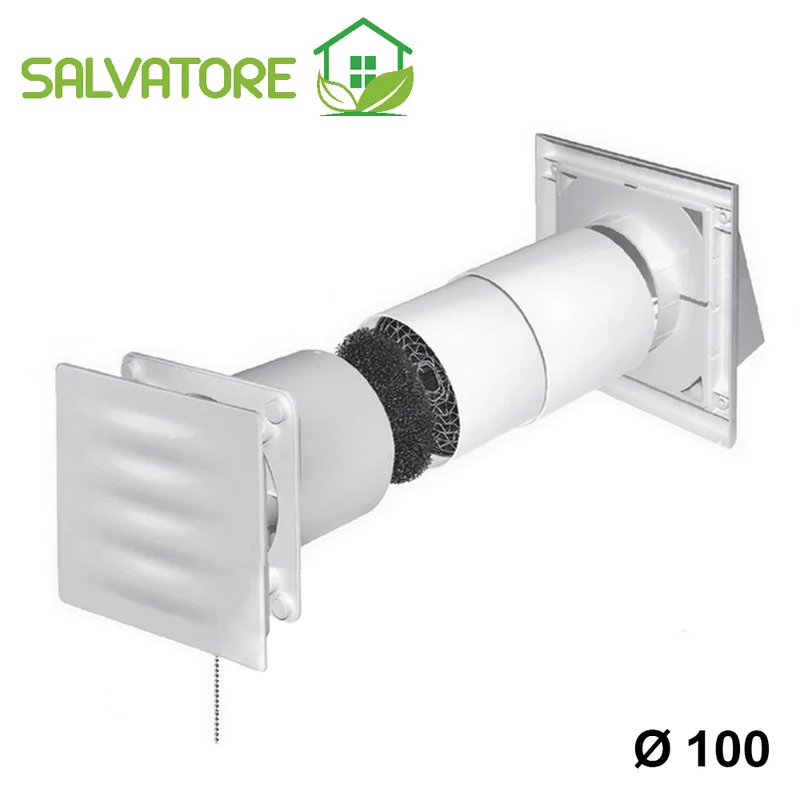

– Controlled Mechanical Ventilation Ø100
Compact Single-Room Heat Recoverer
With Built-In Thermal Exchanger
Maximum Thermal Efficiency during Air Intake: 95%
Description:
The heat recoverer has an internal exchanger that retains and accumulates heat during the extraction of air from inside the room. The accumulated heat is then transferred to the incoming fresh air from outside. This solution allows fresh air to enter at nearly the same temperature as the room, providing significant energy savings. The exchanger is made of aluminum, which is highly effective for thermal exchange, completely water-resistant, and equipped with an air filter for solid and liquid particles.
Application and Advantages:
The model is designed for use in a single living space.
Key advantages of this device include:
An innovative all-aluminum heat accumulator (standard accumulators are usually ceramic). Aluminum’s high accumulation capacity increases efficiency with faster heat exchange and reduces the time needed to reverse the airflow.
Bacteria and/or fungal growth is significantly lower on an aluminum surface compared to a porous ceramic surface. Aluminum does not absorb moisture, improving air quality and ensuring durability even in extreme conditions and high humidity.
Low ventilation speed reduces consumption to 1.5W.
Simple installation with a 220/240V power supply.
Easy to use and control.
Provides excellent ventilation with minimal structural intervention.
Simple wall installation without additional ducts.
Typically, a fan is used to extract air from a room, especially during winter, leading to increased heating costs. Using the reduces heating costs by one-third.
Very low noise electrofan.
No condensate drainage ducts required.
Technical Specifications:
The product complies with EU directives: Low Voltage Directive (LVD) 2006/95/EC, Electromagnetic Compatibility (EMC) 2004/108/EC, EMF Directive, ROHS2 Directive 2011/65/EU.
Maximum thermal efficiency during air intake: 95%
Average thermal efficiency during air intake: 40-45%
Tube diameter: 104 mm
Telescopic and adjustable duct: 260 to 405 mm
Speed adjustment is activated via a chain switch connected directly to the electrofan body.
Speed Adjustment and Technical Data:
| 1st Speed | 37 | 50 | 3 | IPX4 |
| 2nd Speed | 42 | 70 | 4.5 |
Product code:
