– Controlled Mechanical Ventilation Ø125

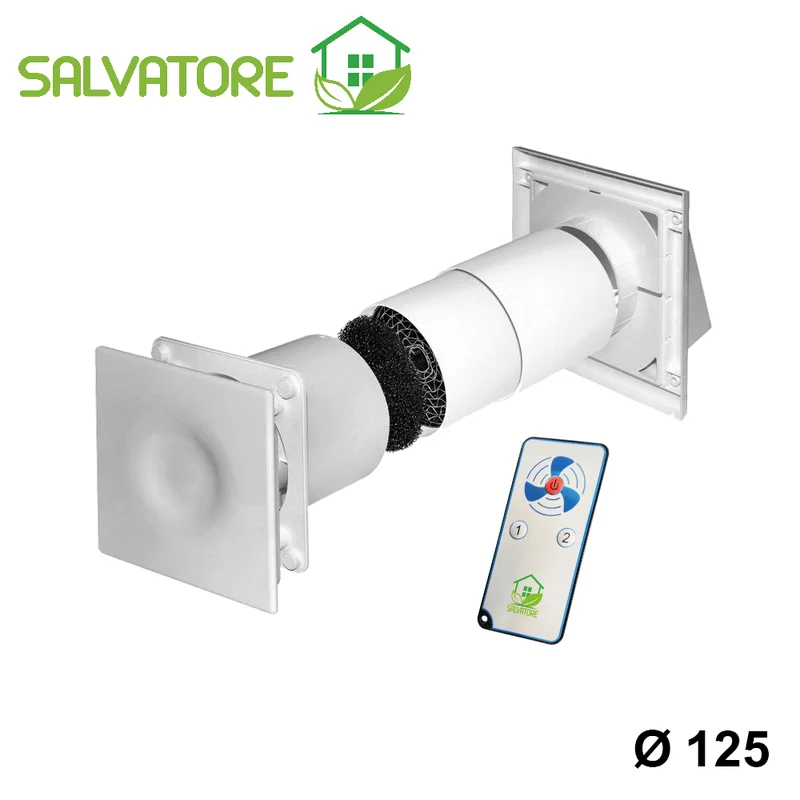

Compact Single-Room Heat Recoverer
With Built-In Thermal Exchanger
Maximum thermal efficiency during air intake: 95%
NEW with REMOTE CONTROL
Description:
The heat recoverer features a thermal exchanger that retains and accumulates heat during the air extraction process from the room. The accumulated heat during extraction is released to the fresh air intake from outside. This solution allows for the introduction of fresh air at nearly the same temperature as the room, significantly reducing energy consumption. The exchanger is made of aluminum, which is one of the best metals for thermal exchange and is also completely waterproof. It comes with an air filter for both solid and liquid particles.
Usage and Benefits:
The model is designed for use in a single living space.
Key benefits of this device include:
An innovative heat accumulator made entirely of aluminum (standard accumulators are ceramic). Aluminum, with its high storage capacity, increases efficiency with faster exchange rates and shorter air flow reversal times.
Bacteria and/or mold proliferation is significantly lower on an aluminum surface compared to a porous ceramic surface. Aluminum does not absorb moisture, enhancing air quality and ensuring durable performance even in extreme and humid conditions.
At low ventilation speeds, power consumption is reduced to 1.5W.
Simple installation facilitated by a 220/240V power supply.
Very easy to use and control.
Provides excellent ventilation with minimal structural intervention.
Simple wall installation with no additional ducts required.
Normally, a fan is used to extract air from a room, especially in winter, leading to increased heating costs due to the extraction of warm air. Using the reduces heating costs by 1/3.
Very low noise electrofan.
No need for condensate discharge ducts.
Technical Specifications:
Product conforms to EU directives: Low Voltage Directive (LVD) 2006/95/EC, Electromagnetic Compatibility (EMC) 2004/108/EC, EMF Directive, ROHS2 Directive 2011/65/EU.
Maximum thermal efficiency during intake: 95%
Average thermal efficiency during intake: 40% to 45%
Tube diameter: 125 mm
Telescopic and adjustable duct from 260 to 405 mm
| 1st: | 37 | 50 | 3 | IPX4 |
| 2nd: | 42 | 70 | 4.5 |
Switching on, off, and speed adjustment are controlled via remote control.
Product Code:
