SCMI083MM – GMC DRIER FILTER 3/8 x 3/8 130 cm MOLECULAR SIEVE WITH LIQUID AND HUMIDITY INDICATOR-Spedizione veloce

Descrizione

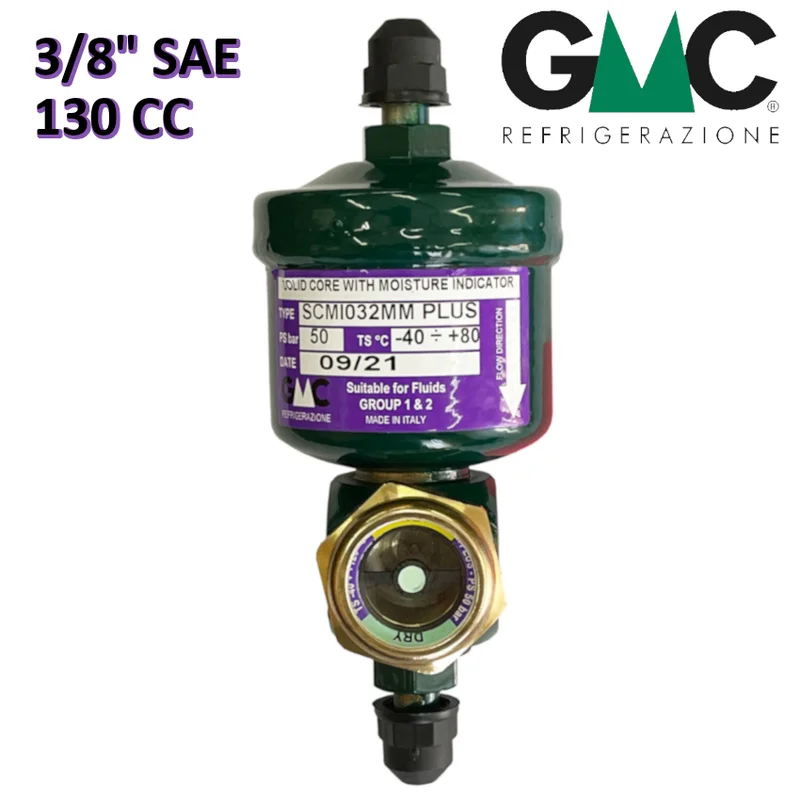

SCMI083MM – GMC DRIER FILTER 3/8” x 3/8” 130 cm³
MOLECULAR SIEVE WITH LIQUID AND HUMIDITY INDICATOR
Function:
The function of an indicator filter is to protect the system from moisture, acids, and solid contaminants; this filter is to be installed on the liquid line. The presence of moisture, immediately indicated by the attached indicator, can cause ice formation; under normal system charging and operating conditions, the refrigerant fluid should pass through the indicator in a completely liquid state. The presence of bubbles indicates a partial evaporation of the fluid along the liquid line.
Construction:
All models of indicator filters have a body and head made of UNI EN 10130 DC04 steel. The assembly of the two parts is done by MIG welding. In these filters, the desiccant charge consists of a single, compact block made of 100% 3 Å molecular sieve. This cartridge is paired with a special type of felt that allows for efficient mechanical filtration combined with low resistance to fluid flow, enhancing dehydration effectiveness. The presence of the indicator downstream of the filter immediately guarantees the real effectiveness of the filter. The indicator features a moisture-sensitive element, which changes color from green to yellow in the presence of moisture in the system; yellow indicates that it is time to replace the desiccant filter. The production range includes versions with SAE Flare threaded connections and soldered copper steel connections.
Installation:
To optimize filter performance, it is recommended to install it with the longitudinal axis vertical and the arrow pointing downwards. The importance of filters within the system is such that scheduled maintenance should be planned to check their efficiency and ensure the correct functioning of the system.
Product code: SCMI083MM
