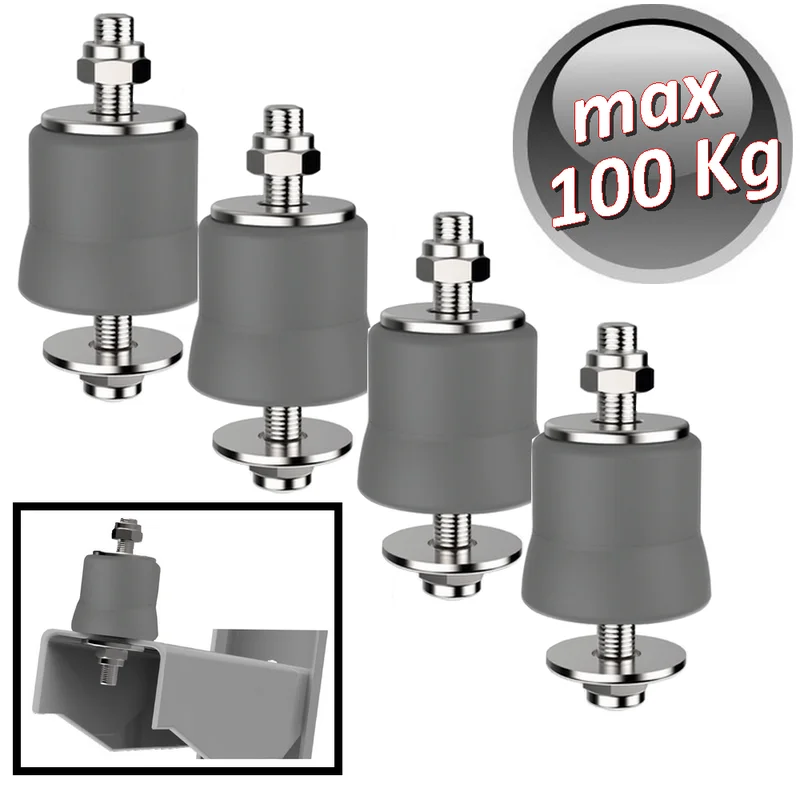

SE-BF-25 – ANTI-VIBRATION MOUNT IN MEGOL FOR BRACKETS MAX CAPACITY 100 Kg. GREY COLOR – 4 PIECES
Features:
Next-generation polymer damper with independent locking screws.
Its special megol composition offers excellent vibration damping and greater resistance to aging and cracking caused by micro-fractures.
Ideal for machines operating from 1250 rpm.
Application field:
Designed to rest on self-supporting structures such as brackets and profiles, ensuring reduction of acoustic pollution while increasing performance and safety.
Intended for applications in domestic or semi-industrial air conditioning machines such as: chillers, fans, hoods, condensers, etc.
Resonance frequency of 715 Hz.
Available in 4 hardness levels based on performance and applied load.
Anti-vibration height: 85 mm
Load capacities:
Grey color: loads between 5 – 25 Kg per piece;
Green color: loads between 20 – 35 Kg per piece;
Blue color: loads between 25 – 45 Kg per piece;
Red color: loads between 30 – 60 Kg per piece.
Product code: SE-BF-25
