Descrizione

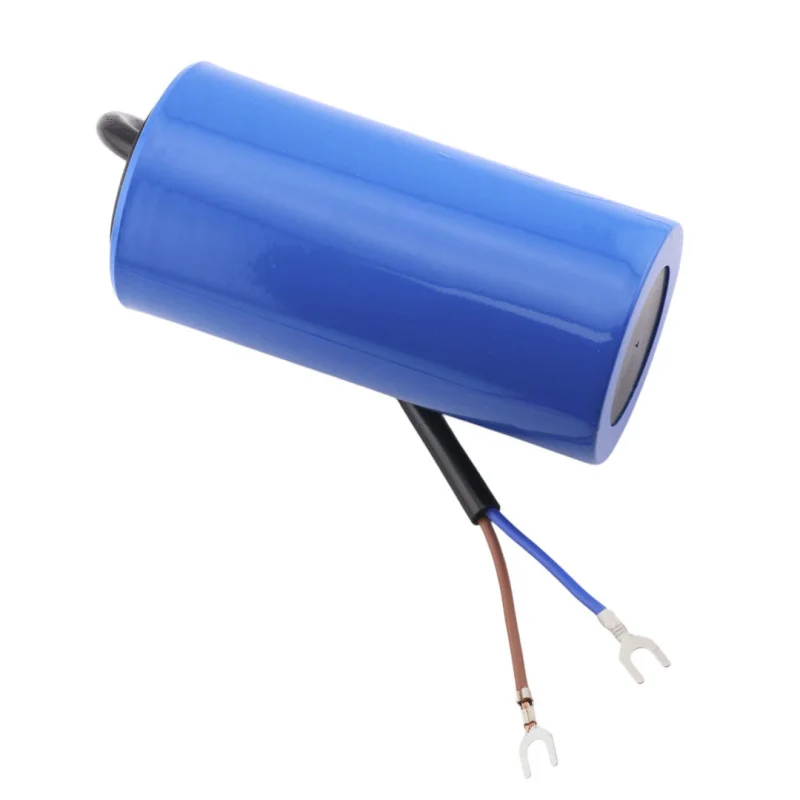

The CD60 type starting electrolytic capacitor is designed for short-term operation in starting circuits of single-phase asynchronous motors. It is used to increase starting torque and reliable motor start-up in applications with alternating voltage supply.
Technical specifications
Type: starting electrolytic capacitor (CD60)
Capacitance: 200 µF
Rated voltage: 450 VAC
Frequency: 50/60Hz
Capacity tolerance: ±5%
Body dimensions: 100 × 50 mm
Design: plastic casing
Connection: wires
Functions and features
Designed for motor starting circuits where higher starting capacity is required
Electrolytic design optimized for short-term starting loads
Cylindrical housing with plastic cover for basic mechanical protection
Wire outlets for direct connection to terminal blocks and cabling
Ideal for
Starting circuits of single-phase asynchronous motors
Compressors, pumps, fans and other motor applications with starting capacitor
Service replacement of starting capacitors in motor units
Package contents
1× start capacitor CD60 200 µF / 450 VAC
Why choose this product?
Clearly defined basic parameters for starting applications: 200 µF and 450 VAC
100 x 50 mm dimensions for compatibility with common brackets and mounting spaces
Suitable for standard 50/60 Hz mains applications
Installation and operating instructions
Before installation, verify the required capacity and voltage class according to the motor and wiring.
Use the starting capacitor only in the starting mode according to the device design (typically with a centrifugal switch or relay), not for continuous operation.
Ensure mechanical fastening with regard to vibrations and stress on the terminals.
Safety notice
Working with AC voltages of 230 V and higher can be dangerous. Installation should only be carried out with the power supply disconnected and by a suitably qualified person.
Always safely discharge the capacitor before handling it, it may remain charged even after the power is disconnected.
Do not exceed the rated voltage of 450 VAC and do not use the capacitor outside the designated motor starting mode.
