Descrizione

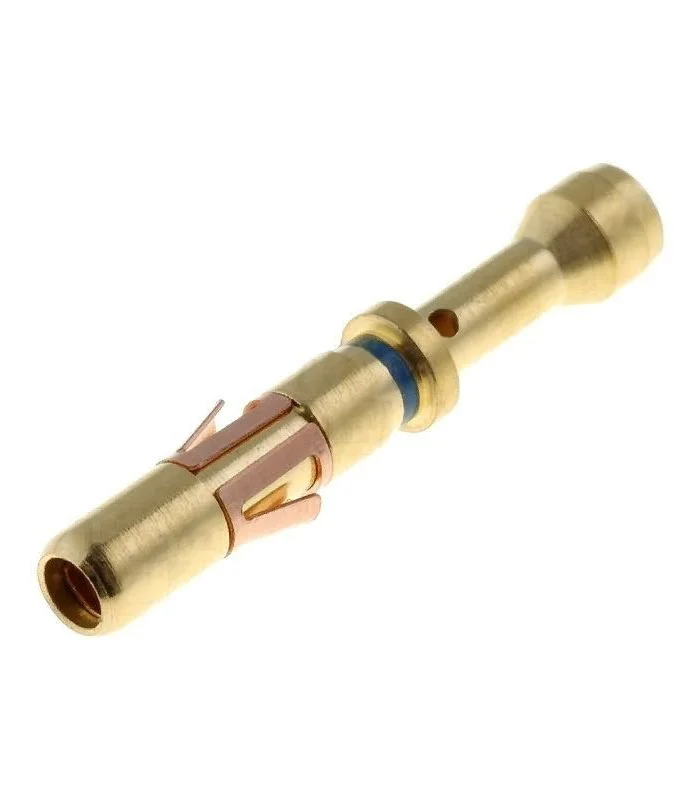

Series: TRIM TRIO SEALOK
For Use With: TRIM TRIO Connectors
Contact Gender: Socket
Wire Size AWG Min: 22AWG
Wire Size AWG Max: 20AWG
Contact Termination Type: Crimp
Contact Size: 16
Contact Material: Nickel
Contact Plating: Gold
SVHC: No SVHC (16-Dec-2013)
Cable Diameter Max: 2.2mm
Cable Diameter Min: 1.18mm
Contact Resistance: 3mohm
Contact Termination: Crimp
Current Rating: 13A
Wire Area Size Max: 0.52mm²
Wire Area Size Min: 0.32mm²
Working Voltage: 750V
