Part #: 12052456

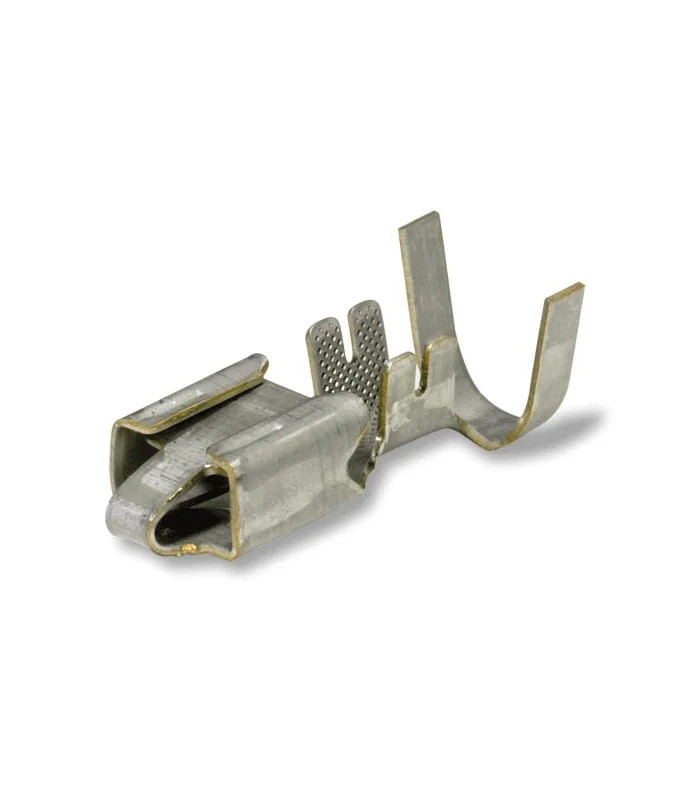

Description: Metri-Pack 630 Series Female Sealed Tin Plating Tang Terminal, Cable Range 3.00 – 5.00 mm2
Product Type: Terminal
Blade size [mm]: 6.3
Terminal family: Metri-Pack
Series: 630
Gender: Female
Sealed: Sealed
Material: CuSn3Zn9
Plating: Tin
Minimum Cable Core Cross Section [mm2]: 3.00
Maximum Cable Core Cross Section [mm2 : 5.00
Minimum Cable Diameter [mm]: 3.49
Maximum Cable Diameter [mm]: 5.24
Current range [A]: 46
Temperature range [?]: -40 to 125
Typical cable seal: 15397197
Weight [g]: 1.41
ELV compliant: Yes
RoHs compliant: Yes
