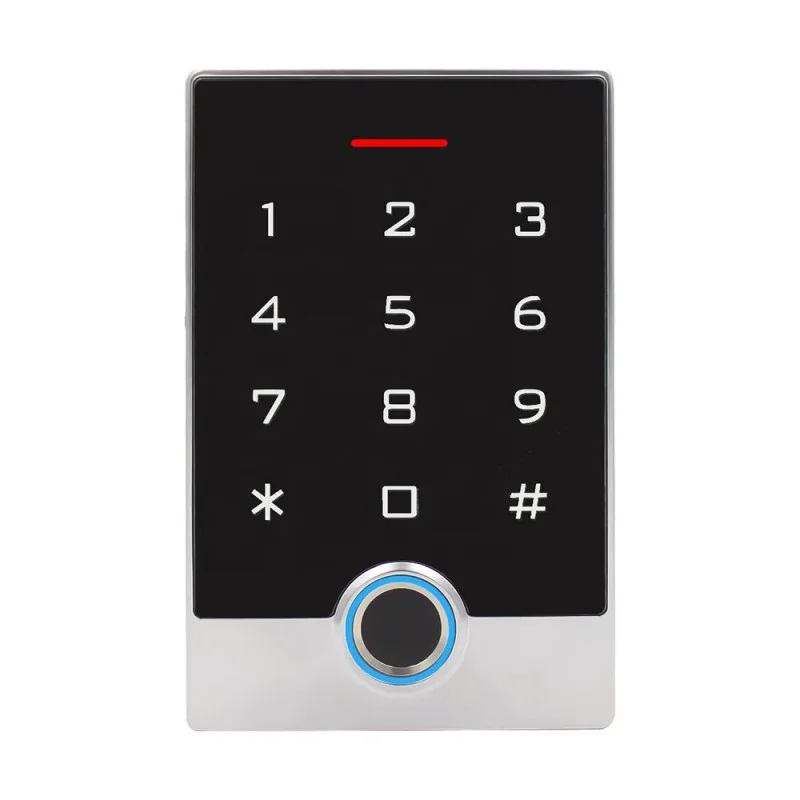

The modern TF3 access system combines a touch keypad, RFID card reader, fingerprint reader and WiFi connection with the Tuya mobile application. It is an ideal solution for securing access to homes, offices, warehouses or garages. It allows remote access control via a mobile application, provides high user capacity and reliable operation even in demanding conditions thanks to IP67 water resistance.
Technical specifications
Power supply: DC 12-24V
Standby consumption: 35 mA
Working current: 100 mA
Working temperature: -40°C to +60°C
Working humidity: 0-95%
Protection: IP67 waterproof design
Material: zinc alloy with metal backlit keyboard
Interface: Wiegand 2658 bit, NO/NC/COM output
Capacity: 10,000 users (RFID + password) / 300 fingerprints
Card frequency: 13.56 MHz Mifare
Package dimensions: 38 × 12 × 10 cm
Weight: 0.5 kg
Functions and features
Control via Tuya Smart App manage users and access from anywhere.
Support for multiple access modes: fingerprint, RFID card, PIN code or a combination of them .
Support for up to 7 door opening methods (e.g. card + code, fingerprint + card, etc.).
Fast and accurate fingerprint recognition (
Indication by sound and LED indicator (green success, red error).
Possibility of connection to an external lock, EXIT button and alarm.
Wiegand reader mode can be used with an external controller.
Backup of user data in memory even after power is disconnected.
Ideal for
Entrance doors of family houses and apartment complexes
Offices, warehouses, workshops, garages and service areas
Entrance gates, industrial buildings and secure zones
Package contents
1× TF3 access unit with WiFi
1× Mounting accessories (screws, dowels, wrench)
1× User manual (EN)
Why choose this product?
Modern and elegant design with touch control
Easy installation and configuration via Tuya App
High security up to 3 levels of authentication
Suitable for outdoor use thanks to IP67 resistance
Supports a wide range of 12-24V DC power supplies
Large user capacity up to 10,000 codes / 300 fingerprints
