Descrizione

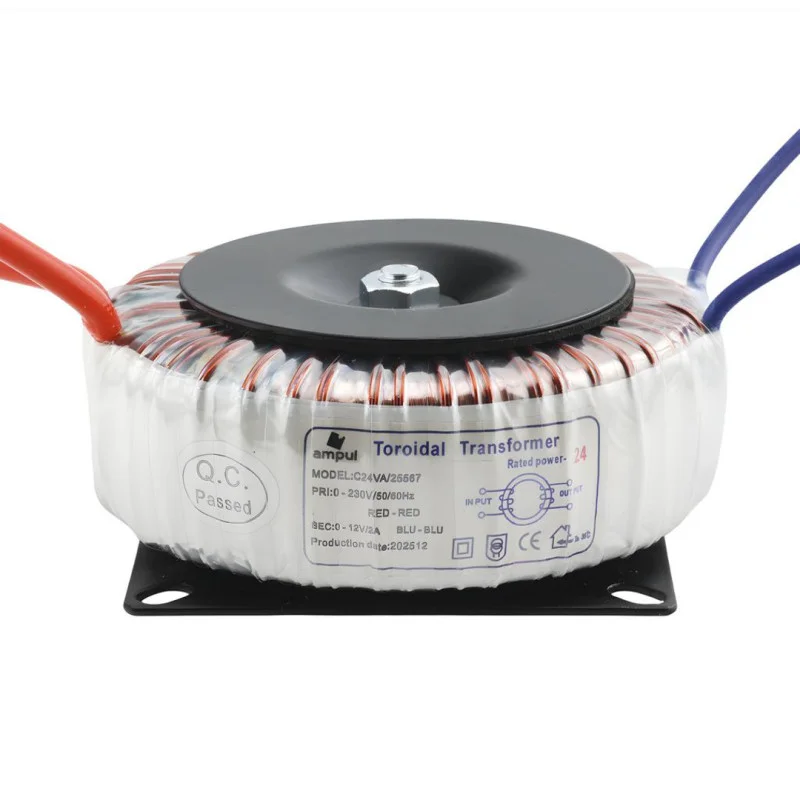

Compact toroidal transformer with output voltage 12 V AC and current 2 A is designed for stable power supply of low-voltage electronic devices. Thanks to the toroidal design, it offers high efficiency, low losses and minimal electromagnetic interference. Small dimensions and quiet operation make it suitable for use in control systems, power supply circuits and technical projects.
Technical specifications
Power: 24 VA
Input voltage (primary voltage): 230 V AC
Input frequency: 50 / 60 Hz
Output voltage (secondary voltage): 12 V AC
Output current (max. secondary voltage current): 2 A
Construction: toroidal transformer
Protection class: IP00
Dimensions: 80×80×38mm
Mounting hole spacing on sheet metal base: 60x60mm
Weight: 750g
Functions and features
Toroidal core with low losses and high efficiency
Very low electromagnetic interference
Quiet operation without vibrations and mechanical hum
Color-coded wires for easy wiring
Galvanic separation of primary and secondary sides
Suitable for continuous operation
Ideal for
Power supply for control and operating electronics
Relay and switching circuits
LED power and auxiliary circuits
Audio and signal applications
Laboratory and hobby projects
Package contents
Toroidal transformer 12 V AC / 2 A
Why choose this product?
Compact dimensions with 24 VA output
Stable output voltage at full load
Long service life and high operational reliability
Easy assembly and safe operation
Suitable for professional and technical use
