Descrizione

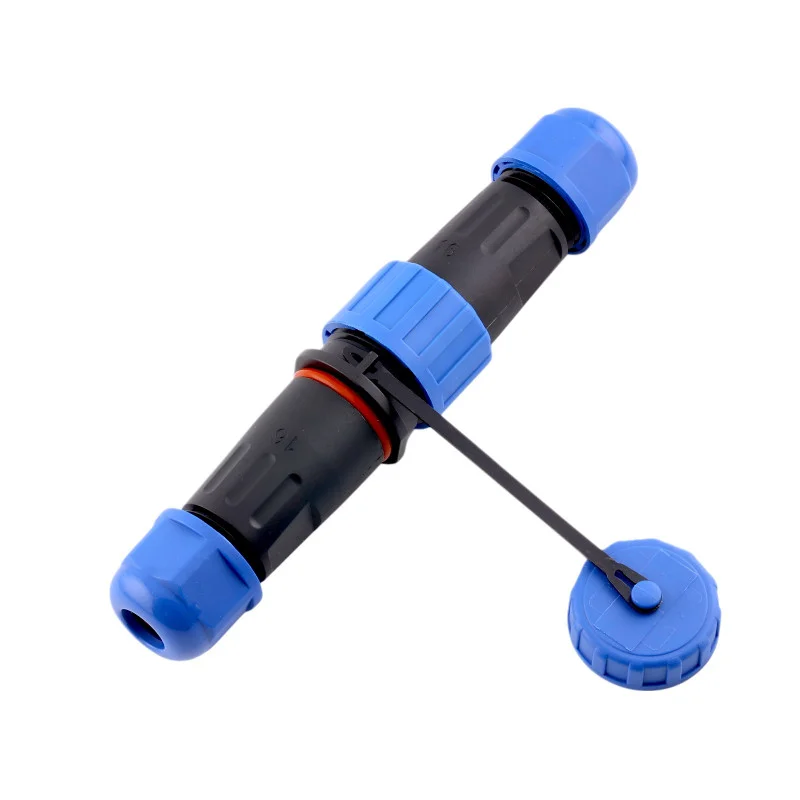

Waterproof docking connector for wires with a diameter of 4.5 – 7.5 mm. Screw design. Gold plated contacts.
Protection: IP68
Working temperature: -20 – 110°C
Relative humidity: 90% – 95%
Material: Polyamide
The package contains both a male and a female
| Type: TY16 | 2-pin | 3-pin | 4-pin |
| Average contacts | 2.8mm | 1.8mm | 1 mm |
| Max. current | 16A | 10A | 5A |
| Max. Tension | 380V | 380V | 250V |
| Contact resistance | 1m | 2m | 5m |
| Max. cable cross-section | 4mm 2 | 1.5mm 2 | 0.75mm 2 |
