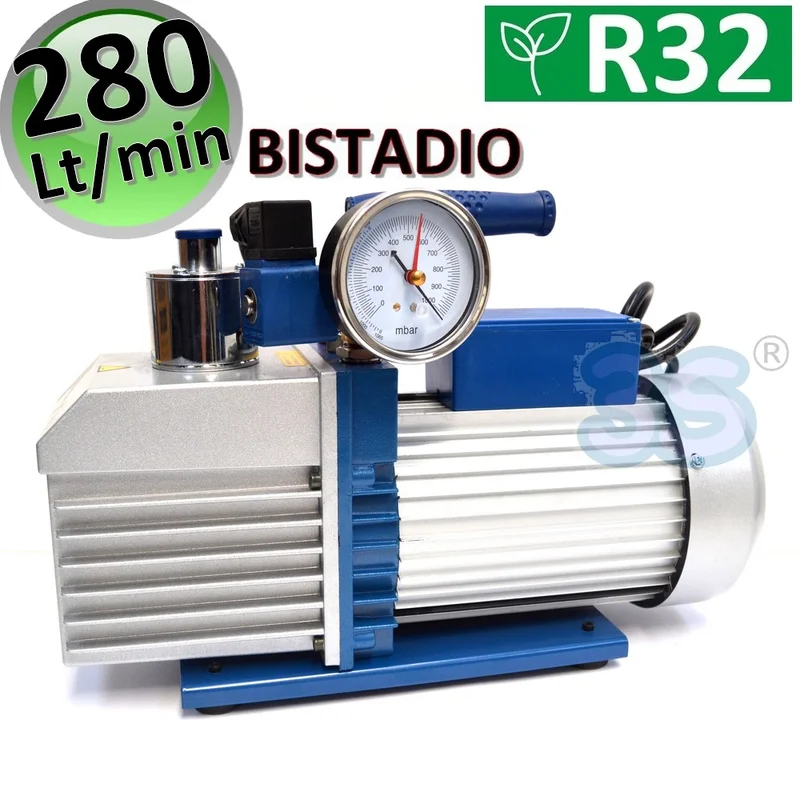

VACUUM PUMP 10 CFM 1 HP 280 L/Min DOUBLE STAGE VACUUM GAUGE SELENOID VALVE-Spedizione veloce

FEATURES:

THIS PUMP MODEL IS MADE WITH A PARTICULAR FIRE RESISTANCE INSULATION ON ELECTRICAL COMPONENTS, FOR THIS REASON IT IS CERTIFIED AGAINST POSSIBLE BREAKDOWN OR DEFLAGRATION CAUSED BY THE INFLAMMABILITY OF THE 2 GAS R32 and R1234YF

IT CAN BE USED ALSO WITH HCFC AND HFC GASES (R410A / R134A / R407C)

MODEL 2 STAGE – 280 liters / minute – 10.0 CFM

EQUIPPED WITH ON-OFF SWITCH

EQUIPPED WITH VACUUM GAUGE AND SELENOID VALVE

OIL LEVEL INDICATOR

1 PACK OF OIL INCLUDING

POWER CORD WITH PLUG Shucko

ERGONOMIC HANDLE OF TRANSPORTATION

TECHNICAL DATA:

STAGE MODEL

CAPACITY ‘INTAKE IN LITERS for MINUTE 280

ENGINE POWER 1 HP

POWER 220 V – 50Hz

VACUUM FINAL : 3 Pa – 0,03 mbar

THE OIL PUMP 520 ML.

SIZE 395x135x280 (mm)

WEIGHT 16,50 KG

Connection fitting: 1/4″ sae
