Descrizione

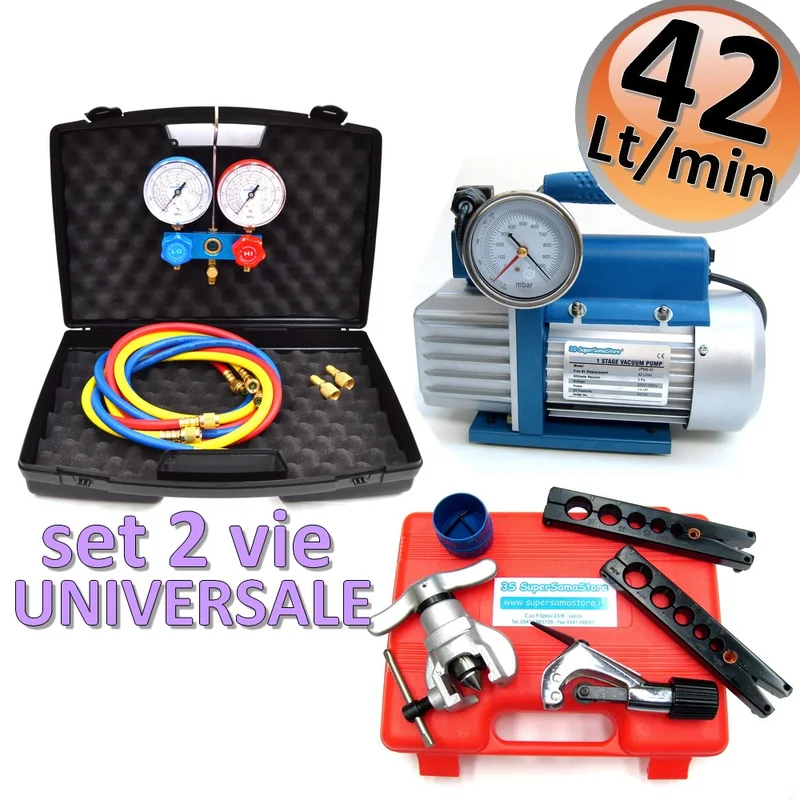

Single-Stage Vacuum Pump 42 L
With solenoid valve and vacuum gauge
+
Universal 2-Way Manometer Set
With scales for R410A – R32 – R407C – R134A
+
Flaring Tool with Clutch
With 2 tube cutters and reamer
FEATURES:
VACUUM PUMP:
Instructions in Italian
Single-stage model, 42 liters per minute
Supplied with vacuum gauge to monitor the vacuum process
Equipped with solenoid valve to prevent oil return in case of accidental power outage
On/Off switch
Oil level indicator
1 pack of oil included
Power cable with SHUKO plug
Ergonomic transport handle
TECHNICAL DATA:
Single-stage model
Suction capacity: 42 liters per minute
Motor power: 1/4 HP
Power supply: 220V – 50Hz
Final vacuum: 3 Pa
Oil in the pump: 310 ml
Dimensions: 290x160x240 (mm)
Weight: 6.70 kg
Connection: 1/4′ SAE
CE certified
UNIVERSAL 2-WAY MANOMETER SET:
Universal 2-way manometers, with scales for R410A – R32 – R407c – R134A
Manometer diameter: 80 mm
3 hoses 1/4 x 1/4 SAE, length 150 cm
2 reducing fittings 1/4 SAE M x 5/16 F
FLARING TOOL WITH CLUTCH:
Fully metallic flaring tool and die
Imperial die for tubes with diameters 5/16 – 1/4 – 3/8 – 1/2 – 5/8 – 3/4
Metric die for tubes with diameters 6 – 8 – 10 – 12 – 16 – 19 (mm)
Equipped with a clutch system, automatic release of the flare once completed
Special helical eccentric tip for more precise flaring
Tube cutter 4-28 mm, with retractable deburring tool
Tube reamer with steel blades for internal and external flaring
Product code: KT.422CF
