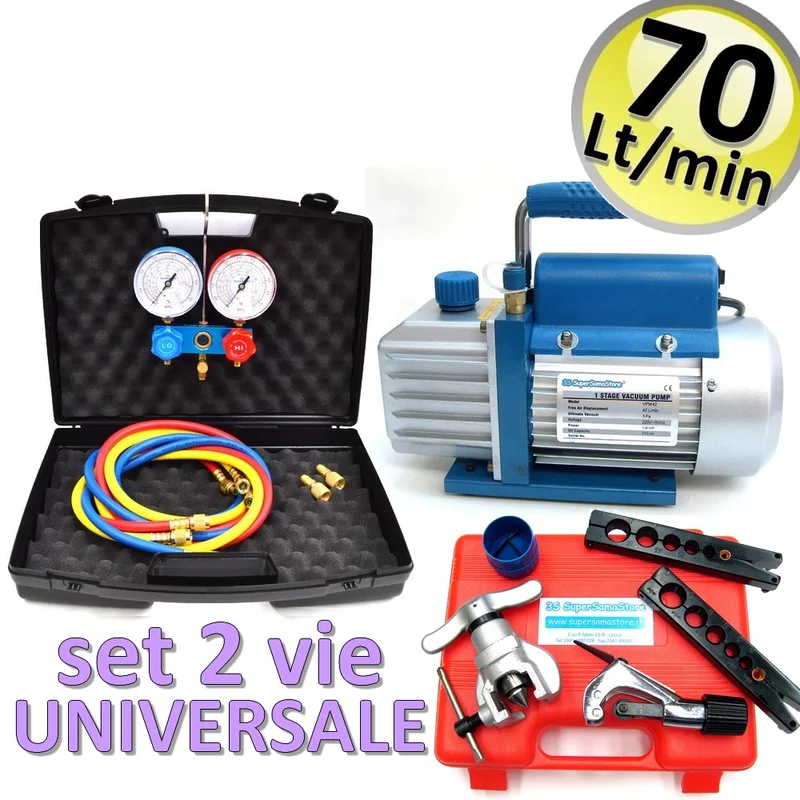

Vacuum pump 70 L/min 2-way manometer set flaring tool with clutch-Spedizione veloce

Descrizione

Single-Stage Vacuum Pump 70 L/min

+

2-Way Manometer Set
With scales for R410A – R32 – R407C – R134A

+

Flaring Tool with Clutch
With 2 tube cutters and reamer

FEATURES:

VACUUM PUMP:

Instructions in Italian

Single-stage model, 70 liters per minute

Equipped with On/Off switch

Oil level indicator

1 pack of oil included

Power cable with SHUKO plug

Ergonomic transport handle

TECHNICAL DATA:

Single-stage model

Suction capacity: 70 liters per minute – 2.5 CFM

Motor power: 1/4 HP

Power supply: 220V – 50Hz

Final vacuum: 3 Pa – 0.03 mbar

Oil in the pump: 310 ml

Dimensions: 310x130x240 (mm)

Weight: 7.10 kg

Connection: 1/4′ SAE

UNIVERSAL 2-WAY MANOMETER SET:

Universal 2-way manometers, with scales for R410A – R32 – R407c – R134A

Manometer diameter: 80 mm

3 hoses 1/4 x 1/4 SAE, length 150 cm

2 reducing fittings 1/4 SAE M x 5/16 F

FLARING TOOL WITH CLUTCH:

Fully metallic flaring tool and die

Imperial die for tubes with diameters 5/16 – 1/4 – 3/8 – 1/2 – 5/8 – 3/4

Metric die for tubes with diameters 6 – 8 – 10 – 12 – 16 – 19 (mm)

Equipped with a clutch system, automatic release of the flare once completed

Special helical eccentric tip for more precise flaring

Tube cutter 4-28 mm, with retractable deburring tool

Tube reamer with steel blades for internal and external flaring

Product code: KT.VPM702CF
