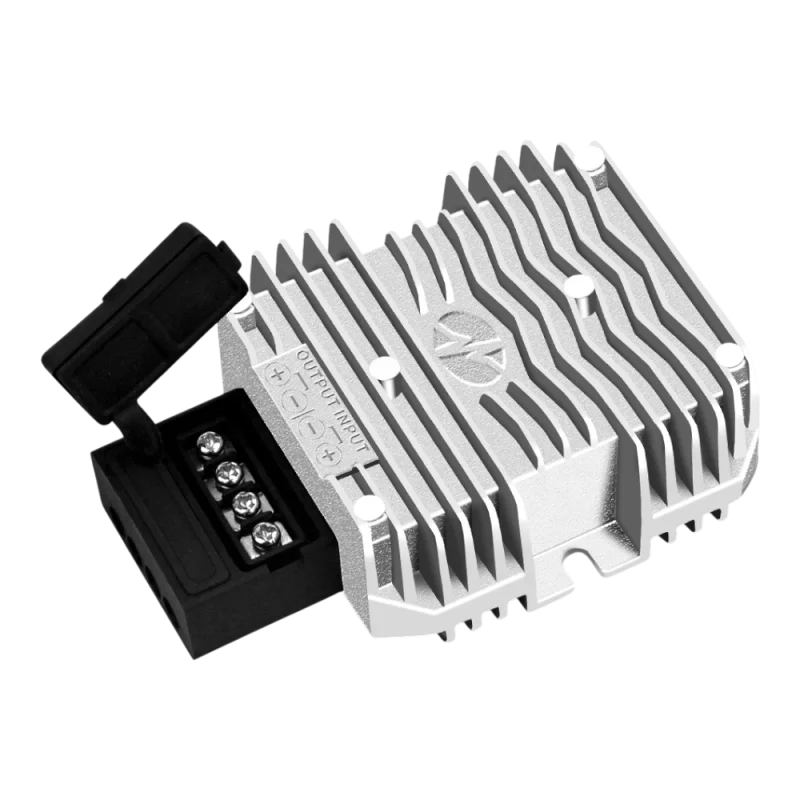

Isolated DC/DC converter designed to convert input voltage 3675V DC to stable 24V DC with output current 5A. Thanks to high efficiency, galvanic isolation and robust aluminum construction with epoxy casting, this converter is ideal for industrial systems, telecommunications, transportation technology and applications with 48V or 60V power supply.
Technical specifications
Input rated voltage: 48V DC
Input range: 3675V DC
Output voltage: 24V DC
Maximum output current: 5A
Maximum output power: 120W
Efficiency: up to 91% (at 48V input)
Electrical isolation: galvanically isolated input and output
Voltage regulation: < 1%
Load regulation: < 2%
Ripple and noise: 14300 mVp-p
No-load consumption: 24 mA at 48Vin
Protections: overvoltage, overcurrent, undervoltage, overheating
Cooling: passive, free air circulation
Operating temperature: 40°C to +80°C
Operating humidity: 10% to 90% RH
Storage temperature: 40°C to +85°C
Weight: 290g
Dimensions: 74 × 74 × 29.5 mm
Input connection: screw terminals
Output connection: screw terminals
Construction: aluminum housing, epoxy potting, surface mount
Certification: CE, RoHS
Functions and features
Galvanically isolated input and output increases safety and reduces the risk of interference.
Wide input range of 36-75V suitable for 48V, 60V and other industrial systems.
High efficiency of up to 91% minimizes heating and increases service life.
Robust construction with resistance to vibration, moisture and dust.
Stable 24V output even with input voltage fluctuations.
Compact dimensions allow easy installation even in limited space.
Ideal for
Telecommunications and network systems
Industrial automation and control
Transport and on-board electronics with 4860V power supply
Power supply for power modules, sensors and control units
Applications requiring isolated and stable 24V DC
Package contents
1× DC/DC converter 3675V 24V, 5A, isolated
Why choose this product?
Reliable 120W power with high efficiency.
Galvanic isolation protects connected systems from faults.
Durable aluminum construction with long service life.
Wide input range for universal use in industry.
Stable operation even in extreme temperature and humidity conditions.
