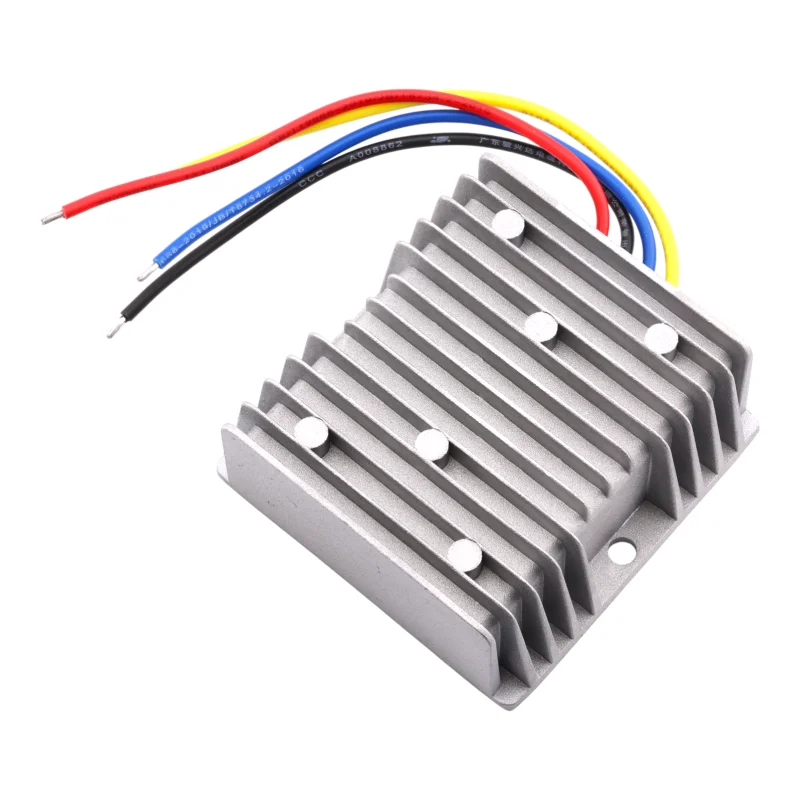

The high-performance isolated DC/DC converter NP-DTDI9-36S1210 is designed for reliable conversion of a wide range of input voltages from 936V DC to a stable output voltage of 12V DC. Thanks to galvanic isolation of the input and output, it is suitable for industrial applications, automotive systems, powering sensitive electronics and devices requiring increased safety and interference suppression.
Technical specifications
Converter type: isolated DC/DC converter
Input voltage: 9-36V DC
Output voltage: 12V DC
Maximum output current: 10A
Maximum power: 120W
Dimensions: 74 × 74 × 32 mm
Weight: 300g
Protection: IP67
Cooling: passive, aluminum finned body
Electrical separation: galvanic isolation input/output
Functions and features
Wide input voltage range allows use in both 12V and 24V systems
Galvanic isolation increases safety and protects connected devices
High output power up to 120W with compact dimensions
Robust aluminum housing ensures effective heat dissipation
Increased resistance to moisture, dust and vibration
Connection using color-coded wires for easy installation
Ideal for
Automotive and on-board systems
Industrial equipment and control systems
Power supply for LED systems and electronic modules
Telecommunications and security technology
Applications requiring ground separation and interference reduction
Package contents
1× isolated DC/DC converter NP-DTDI9-36S1210
Why choose this product?
Stable and safe power supply thanks to galvanic isolation
High power of 120W in a compact design
Rugged design with IP67 protection for harsh conditions
Universal use in a wide range of professional applications
