Descrizione

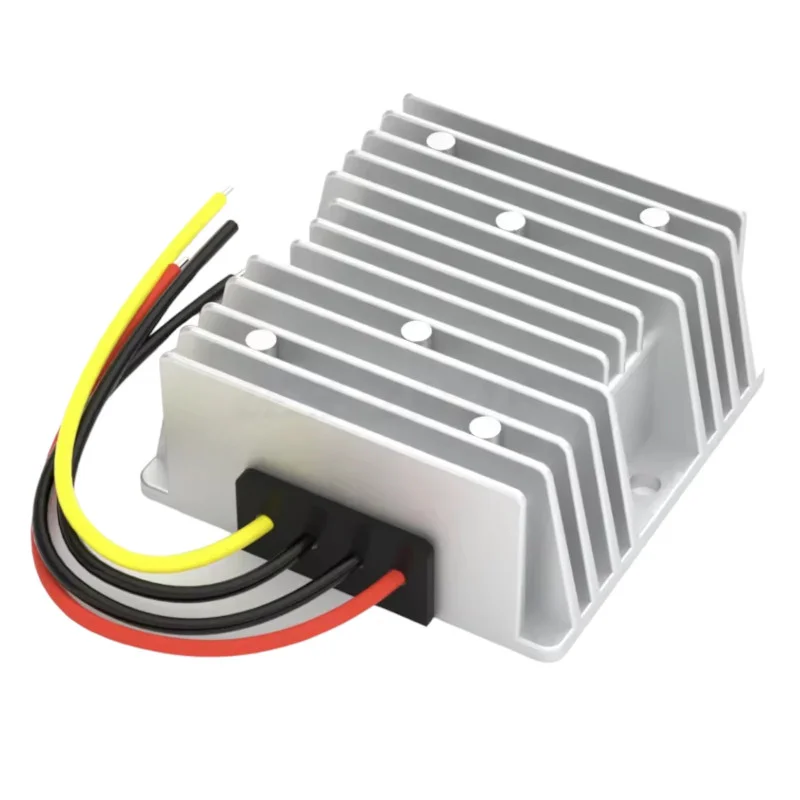

The NP-DTD1224S303 DC-DC voltage converter is used to convert a direct current input voltage in the range of 10-25V DC to an output voltage of 30V DC. It is designed to power DC devices that require a stabilized voltage of 30V DC and a current of up to 3A under correct wiring and operating conditions.
Technical Specifications
Product type: DC-DC voltage converter
Model: NP-DTD1224S303
Input voltage: 10-25V DC
Output voltage: 30V DC
Output current: 3A
Output power: 90W
Certifications: CE, RoHS
Protection rating: IP68
Dimensions: 74x74x32 mm
Weight: 250 g
Features and Properties
Conversion of DC voltage from a lower input level to a 30V DC output.
Designed for use in electrical and electronic circuits with DC power supply.
Suitable for systems where an input voltage of 10-25V DC is available and the load requires 30V DC.
Correct input and output polarity must be observed for proper operation.
Ideal For
Power supply setups with a DC input in the range of 10-25V DC.
Electronic projects requiring a 30V DC output voltage.
Service and development applications where DC voltage conversion is needed.
Integration into devices after verifying the electrical requirements of the connected load.
Package Contents
1x DC-DC voltage converter NP-DTD1224S303
Why Choose This Product
Input range of 10-25V DC and output of 30V DC.
The 3A output current allows powering loads corresponding to these values.
The type designation NP-DTD1224S303 allows for clear identification of the converter during circuit design or maintenance.
Suitable for applications where a direct 30V DC power source is not available.
Installation and Operating Instructions
Before connecting, verify that the input voltage does not exceed the 10-25V DC range.
The connected load must match the output values of 30V DC and 3A.
Observe the correct polarity of both input and output connections.
Install the converter in a way that prevents short circuits, mechanical damage, or contact with conductive objects.
Requires professional installation by a person knowledgeable in working with DC power circuits.
Safety Warnings
Incorrect wiring can cause damage to the converter, the connected load, or the power supply.
Overloading, short circuits, or insufficient cooling may result in overheating.
Do not operate the converter outside the specified 10-25V DC input range.
Before handling, disconnect the power supply and verify the absence of voltage on the terminals or wires.
The product is not intended for direct connection to mains voltage.
