Descrizione

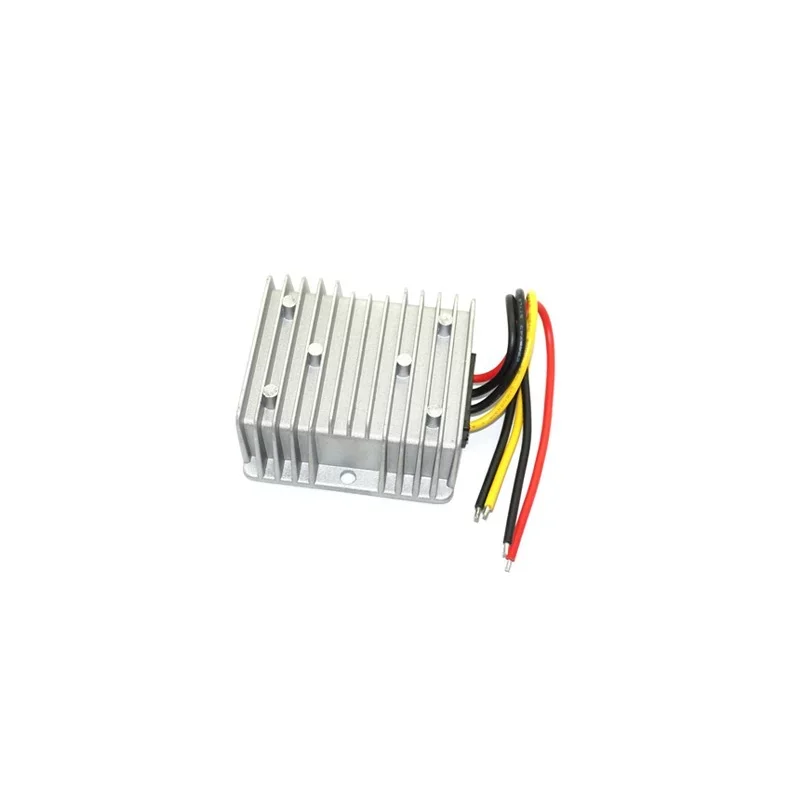

High quality stabilized DC/DC converter with input voltage 30-60V DC to 15V DC max. 10A.
Very wide input voltage range.
Input voltage: 36V DC, 48V DC (range 30-60V DC)
Output voltage: 15V DC, max. 10A
Efficiency: 95%
No-load current consumption: max. 70mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -40~+80°C
Ambient humidity: 0~95%
Protection: IP68
Size: 74x74x32mm
Weight: 275g
