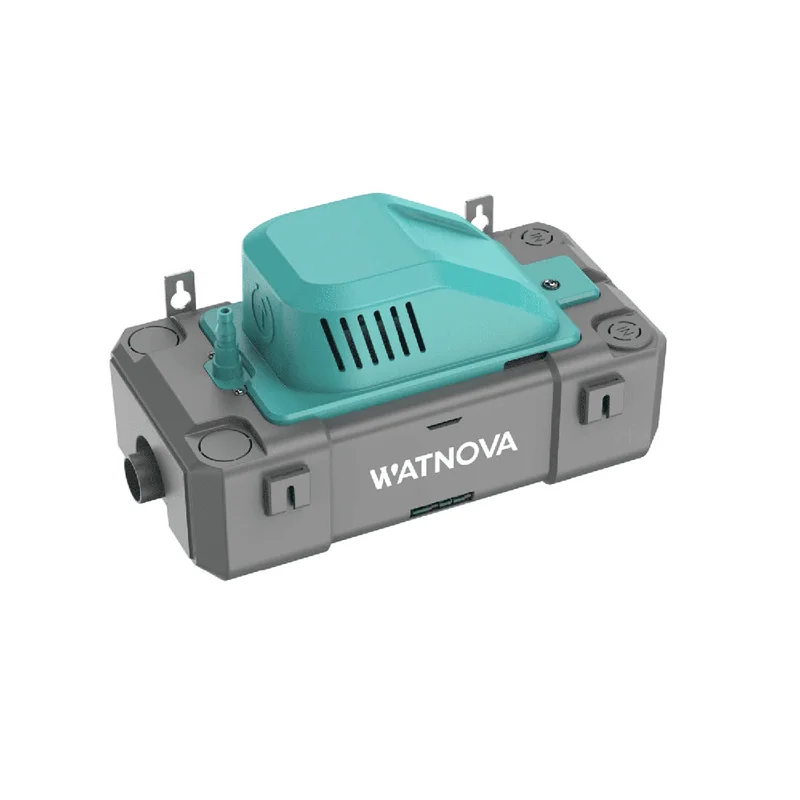

W65 – Air conditioner condensate drain pump 240L/h with TANK reservoir – MASTO

The W65 condensate drain pump with TANK reservoir is a compact and reliable solution for draining condensate from air conditioners and HVAC units up to 120 kW/400.000 Btu/h. Thanks to its reduced height of only 143 mm and 1,8 L reservoir, it integrates easily into limited technical spaces, ensuring continuous and safe liquid management. The vertical centrifugal pump, resistant to dirt, is designed to reduce maintenance operations over time, while the ventilated motor with thermal protection ensures stable operation even under prolonged working conditions. The W65 offers a maximum flow rate of 240 L/h and a head up to 6,5 m, ideal for systems with long or elevated drain lines. The power indicator light allows immediate verification that the pump is operating, while the integrated safety switch prevents overflow in case of drain failure. Installation is flexible: it can be wall-mounted or suspended, adapting to different system configurations and simplifying the installers work.

Features:

Space-saving solution with a height of only 143 mm

Vertical centrifugal pump, dirt-resistant for reduced maintenance

Power indicator light to quickly check whether the pump is on

Flexible installation: wall-mounted or suspended installation

Ventilated motor with thermal protection for stable operation

Integrated safety switch to prevent overflow in case of failed drainage

Maximum flow rate 240 L/h and head up to 6,5 m (at 60 Hz)

Integrated 1,8 L reservoir for effective condensate management

Specifications:

Power supply: 100120 V~ or 220240 V~

Power consumption: 75 W (60 Hz) / 60 W (50 Hz)

Operation: non-continuous duty

Maximum head: 6,5 m / 21 ft at 60 Hz, 5 m / 17 ft at 50 Hz

Maximum flow rate: 240 L/h (65 GPH) at 60 Hz, 200 L/h (53 GPH) at 50 Hz

Maximum thermal capacity of the unit: 120 kW/400.000 Btu/h (60 Hz) 100 kW/330.000 Btu/h (50 Hz)

Outlet connection: 8/10 mm (5/16″ / 3/8″)

Inlet connection: 25/26 mm (1″)

Liquid temperature range: 040 °C / 104 °F

Reservoir capacity: 1,8 L (1/2 gallon)

Package contents: 2 suspension hooks, 2 wall hooks, 2 expansion plugs, 2 cable ties 300×5 mm, instruction manual

Product code: W65
