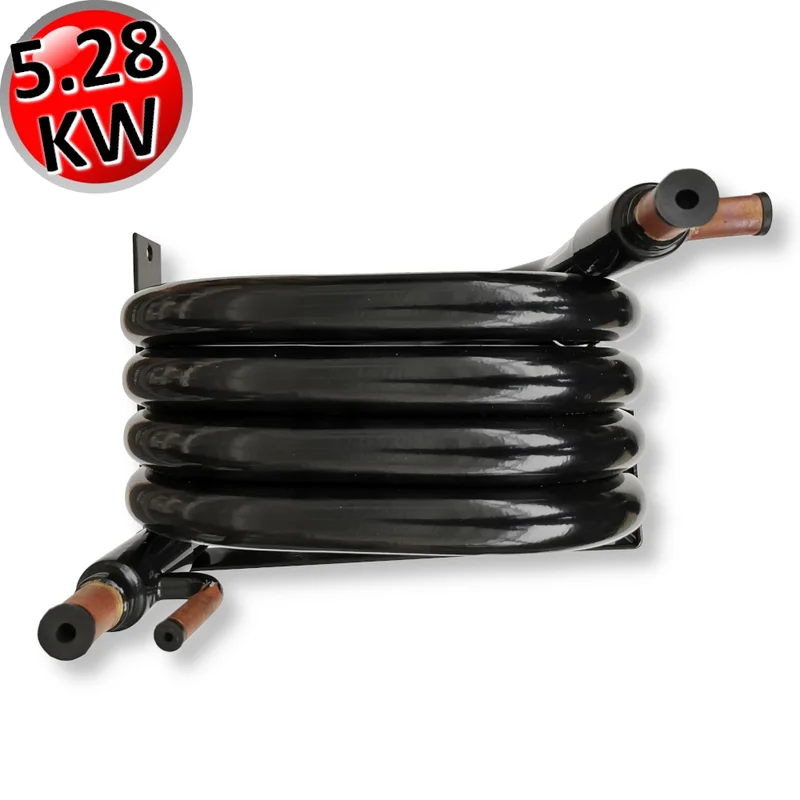

SR-BA-018-H – Water-cooled coaxial condenser 5.28 kW
for refrigeration systems
A water-cooled coaxial condenser is a type of heat exchanger used in refrigeration systems. This device operates based on the principle of condensation, which is the process of a gas transitioning from a gaseous to a liquid state, releasing heat.
Coaxial condensers are preferred for their heat exchange efficiency, often used where space is limited, as their coaxial design allows for a smaller footprint compared to other types of condensers.
The water-cooled coaxial condenser operates by exploiting the principle of heat exchange between two fluids flowing in opposite directions within a coaxial tube. The tube is made up of two concentric ducts: an inner and an outer one. The fluid to be cooled (e.g., gaseous refrigerant in a refrigeration system) flows through the smaller inner tube, while water, acting as the cooling fluid, flows through the annular space between the two tubes.
During the condensation process, heat is transferred from the refrigerant to the water, causing the refrigerant to condense from a gas to a liquid. This heat exchange is made more efficient by the large contact surface between the two fluids and the countercurrent flow, which maximizes the thermal gradient and thus the heat transfer.
The main advantage of a coaxial condenser is its compactness and efficiency in heat exchange, making it ideal for applications where space is limited and high cooling capacity is required. Moreover, the use of water as a refrigerant fluid can be more cost-effective and sustainable in some cases, especially where cooling water is readily available.
Specifications:
Refrigerant: Ø 12.70 9.52 mm | 1/2 3/8;
Water: Ø 19.00 19.00 mm | 3/4 3/4;
A: 260 mm;
B: 145 mm;
C: 195 mm;
D: 240 mm;
E: 280 mm;
F: 110 mm.
Net weight: 5.5 Kg.
product code: SR-BA-018-H
