Descrizione

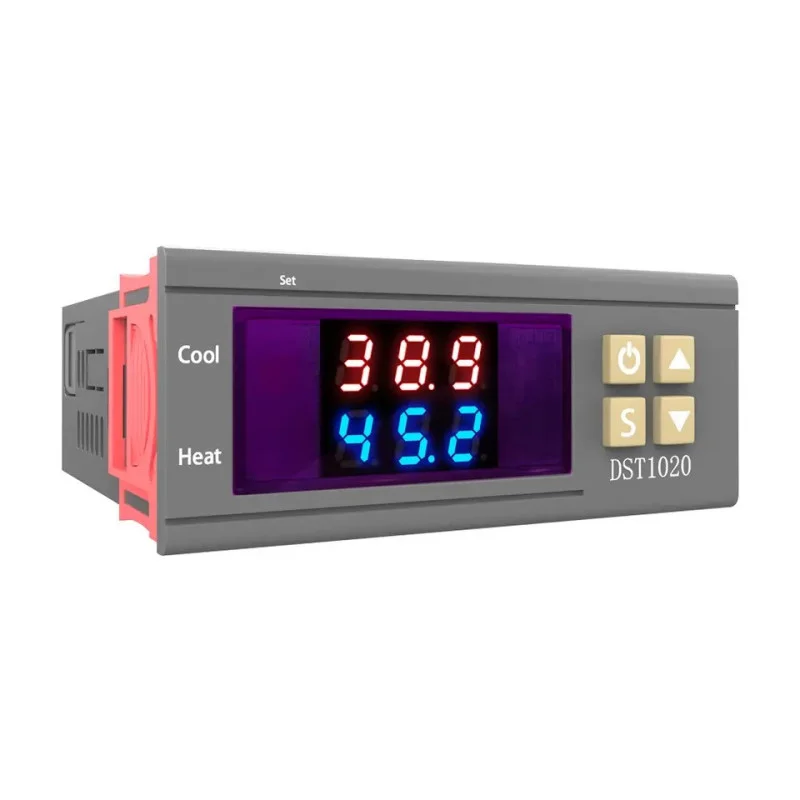

A simple digital thermostat with two output relays allows you to regulate the temperature in the range of -50°C ~ 100°C with a resolution of 0.1°C. For example, heating can be connected to one output and cooling to the other. Heating and cooling will then maintain the set temperature on the thermostat. The thermostat includes a resistance temperature sensor in a waterproof stainless steel housing with IP68 protection. Power supply from the 230V AC network.
Power consumption: 3W
Adjustable temperature: -50°C ~ 99.9°C (resolution 0.1°C)
Temperature measurement accuracy: ±1%
Temperature sensor: NTC resistance, 10k, 0.5%
Switching contact: 250V AC 10A (with resistive load!)
Relay contact type: NO
Working temperature: 0 ~ 60°C
Display color: red
Dimensions: 75 x 34.5 x 85mm
Panel hole dimensions: 71 x 29mm
Weight: 138g
Accessories: waterproof NTC sensor, 1m
