Descrizione

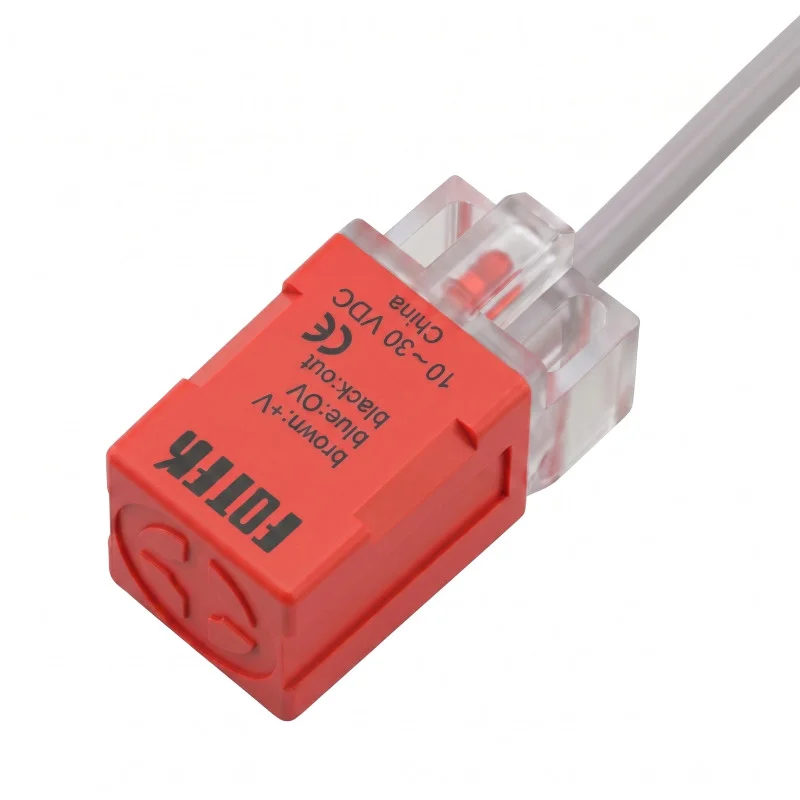

The PL-05N inductive sensor is a non-contact sensor designed for detecting metal objects in industrial and automation applications. The design with a rectangular body allows for fixed mounting in structures and machine units. The sensor is equipped with a 100 cm cable and is suitable for tasks where output switching is required when approaching a metal target without mechanical contact.
Technical specifications
Model: PL-05N
Product type: inductive proximity sensor
Design: long square body
Output state: NO
Output method: NPN
Sensing distance: 5.0 mm
Mounting method: flush mounting
Scanning direction: horizontal
Supply voltage: 10 to 30 V DC
Response: 800 Hz
Protection: IP67
Operating temperature: -25 to +80 °C
Operating humidity: 35 to 95% RH
Maximum output current: 150 mA
Maximum current consumption: 10 mA
Residual voltage: less than 0.1 V
Wire terminal: brown +10 to 30 V DC, blue 0 V, black output
Protection circuits: short circuit and reverse polarity protection
Body dimensions: 17 x 17 x 35 mm
Cable length: 100 cm
Functions and features
Non-contact inductive detection of metal objects.
Rectangular body with mounting holes for secure mounting.
LED status indication on the sensor body.
Three-wire DC design with NPN transistor output.
Recessed design for installation flush with the mounting element.
IP67 rated design for use in industrial environments.
Ideal for
Detection of the position of metal parts in machines and automation lines.
Sensing the presence of metal parts in feeders, fixtures and conveyors.
End and position sensing in industrial applications.
Integration into control systems operating with DC power supply and NPN inputs.
Package contents
Inductive sensor PL-05N with connection cable 100 cm
Why choose this product?
Specifically designed electrical connections and a known output type facilitate integration into control circuits.
The recessed design and compact square body support installation in limited spaces.
IP67 protection and built-in protection circuits expand the possibilities of use in industrial operations.
Fast response is suitable for sensing in applications with a higher frequency of state changes.
Installation and operating instructions
Follow the wire connection according to the sensor terminals: brown wire power supply, blue wire 0 V, black wire output.
Install the sensor in accordance with the required mounting method for flush mounting.
During installation, ensure mechanical stability and protection of the cable against tension, breakage and abrasion.
Before commissioning, verify the compatibility of the NPN output with the input of the downstream device.
Safety notice
Only perform installation and connection when the power supply is disconnected.
Incorrect wiring can lead to damage to the sensor or the connected control system.
Observe the specified DC supply voltage and do not exceed the maximum output load.
Installation into electrical and control equipment should be carried out by a person with appropriate professional qualifications.
