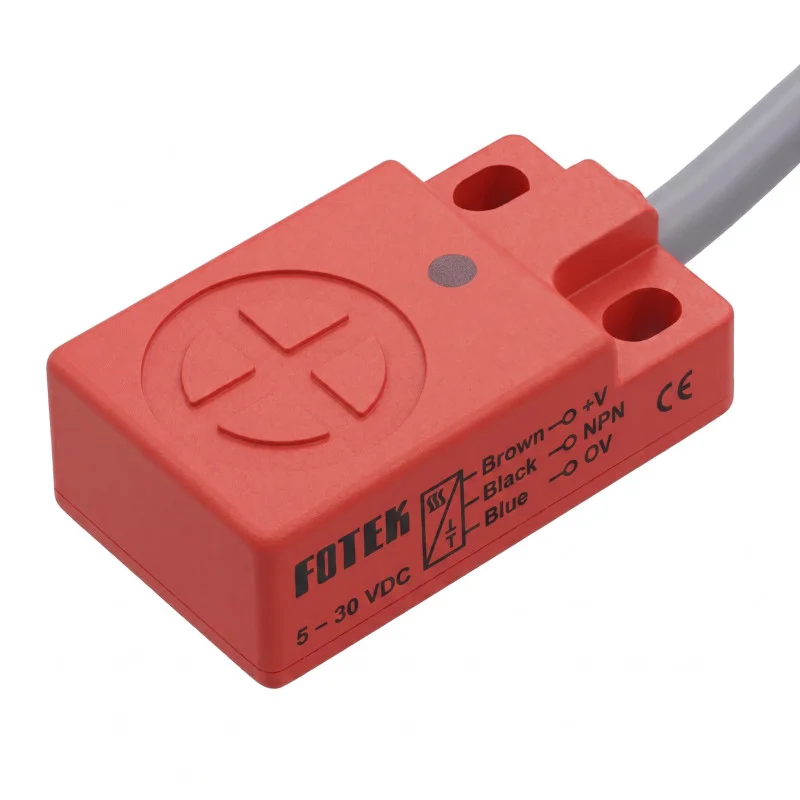

SP-05NB is a board-mounted inductive proximity sensor for non-contact detection of metal objects. It is intended for installation in fixed mechanical assemblies where output switching is required when the set sensing distance is reached. The design with a cable and a rectangular body with mounting holes facilitates installation in machines, fixtures and automation units.
Technical specifications
Model: SP-05NB
Series: PS Series Inductive Proximity Sensor
Design type: plate type, plate design
Output method: NPN
Output state: NC
Sensing distance: 5.0 mm
Mounting method: flush
Scanning direction: vertical
Supply voltage: 1030 VDC
Response: 800 Hz
Maximum output current: 150 mA
Maximum current consumption: 10 mA
Residual voltage: less than 0.1 V
Power ripple arrester: less than 20% Vp-p
Hysteresis: less than 10% of the sensing distance
Thermal drift: less than 10 µm per °C
Voltage drift: less than 1 µm per V
Protection circuits: short circuit and reverse polarity protection
Working temperature: -25 °C to +80 °C
Operating humidity: 35% to 95% RH
Protection: IP67
Sensing surface color for NPN: red
Body dimensions: 30.5 × 18.0 mm
Body length without cable: 10.0 mm
Cable length: 200 cm
Mounting holes: 2 holes
Functions and features
Non-contact inductive detection of metal objects without mechanical wear of the sensing part.
Rectangular plate design suitable for fastening with screws.
Recessed sensor design for mounting flush with the surrounding material.
NC output for applications where a closed state in the rest position is required.
Three-wire DC connection according to the diagram for the NPN variant.
Cable outlet from the sensor body for fixed connection in the installation.
IP67 protection for use in industrial environments.
Ideal for
Detection of metal parts in automation technology.
Position control in fixtures, conveyors and machinery.
End and presence sensing in industrial applications.
Installations with limited mounting space where a cylindrical sensor design is not suitable.
Package contents
Inductive proximity sensor SP-05NB with cable.
Why choose this product?
Verified technical parameters for DC power supply 1030 V.
Combination of plate body, flush mounting and vertical sensing for precise mechanical integration.
NC NPN version for specific requirements of control and signaling circuits.
Integrated short-circuit and reverse polarity protection increases wiring durability.
IP67 protection and a wide operating temperature range support use in industrial operations.
Installation and operating instructions
Follow the wiring diagram for the NPN DC sensor.
Install the sensor as a flush-mounted type to maintain the declared sensing properties.
The supply voltage must be within the range of 1030 VDC.
Connect the load in accordance with the NPN output connection and do not exceed the maximum output current.
During installation, ensure mechanical stability and protection of the cable against pulling, bending and damage.
Safety notice
The product is an electrical sensor designed for properly designed DC circuits.
Incorrect wiring may lead to sensor damage, short circuit or output failure.
Perform installation and connection with the power disconnected.
When installing in an industrial facility, ensure protection against mechanical damage to the cable and sensor body.
Professional installation is especially suitable for connection to control systems and machinery.
