Descrizione
The RL-STEP-03 intelligent controller is designed for smooth and automatic control of LED strips on staircases. Using A/B motion sensors, it reacts to the entry and exit of people and allows elegant gradual lighting and dimming of individual steps. An ideal solution for modern interiors where you want to achieve a combination of comfort, safety and aesthetic appearance of lighting.
Technical specifications
Model: RL-STEP-03
Supply voltage: DC 12-24 V
Maximum power: 420 W (max. 15 W per step)
Number of channels: 28 individually controllable outputs
LED control voltage: DC, constant voltage
Standby power consumption: < 1 W
Case material: PC (durable plastic)
Color: white
Controller dimensions: 204 × 82 × 30 mm
Remote control dimensions: 130 × 44 mm
Sensor dimensions: diameter 14 mm × length 30 mm
Sensor cable length: 1 m (extension cable 5 m)
Protection: IP20 (intended for indoor use)
Weight: 410g
Functions and features
Gradual lighting and dimming of LED strips when entering/exiting stairs
Adjustable number of steps (1-28) via remote control
9 transition speed levels (1501200 ms per step)
Adjustable delay time and brightness intensity
Automatic on/off based on motion detection (A/B sensors)
Modes for different lighting styles (smooth, sequential, etc.)
LED indicator for each setting (blue and red indicator diodes)
Easy control via the supplied IR remote control
Ideal for
Staircase lighting in family houses, apartments and commercial spaces
Corridors, passageways and staircases with 12/24 V LED strips
Light automation in design and smart installations
Modern interiors requiring efficient and energy-efficient lighting
Package contents

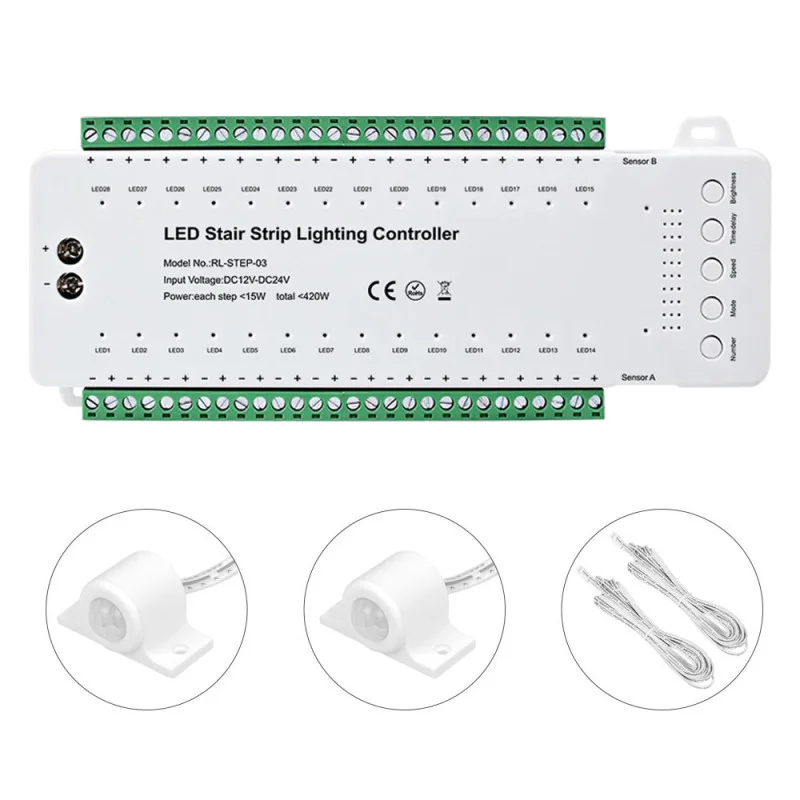

1× LED stair lighting controller RL-STEP-03
2× PIR sensor (A/B)
1× user manual
Why choose this product?
Elegant and automatic stair lighting control with smooth start-up
Easy installation and simple setup using the remote control
Support up to 28 steps and high power up to 420W
Compatible with 12 V and 24 V LED strips
Safe low voltage power supply and long life
Modern design suitable for concealed mounting and discreet wiring
