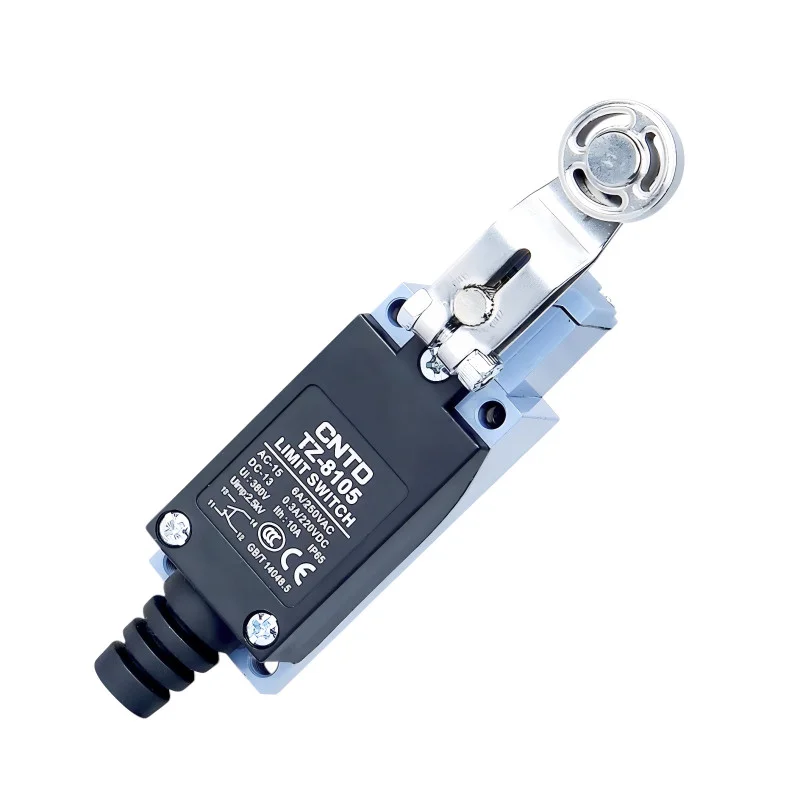

The CNTD TZ-8105 limit switch from the TZ-8 series is a robust industrial mechanical switch with a vertical lever terminated with a metal roller. This design is ideal for applications with lateral or inclined approach, where smooth motion transmission, low friction and high mechanical resistance are required. The metal roller significantly reduces wear during frequent cycling and ensures a long service life.
Technical specifications
Type: mechanical limit switch
Model: TZ-8105
Controller: vertical lever with metal roller
Contact arrangement: 1× NO + 1× NC (double circuit)
Operating speed: 5 mm/s to 0.5 m/s
Contact resistance: max. 25 m
Insulation resistance: min. 100 M (at 500 VDC)
Dielectric strength: 1500 VAC / 1 minute
Mechanical life: 1,000,000 cycles
Electrical life: more than 500,000 switching cycles
Operating temperature: -20°C to +70°C
Relative humidity: 95% RH
Protection: IP65
Dimensions: 29 × 27 × 127 mm
Weight: 155g
Rated voltages and currents
| Resistive (AC) | 125VAC | 5 A | 5 A |
| 250VAC | 5 A | 5 A | |
| Resistive (DC) | 830 VDC | 5 A | 5 A |
| 125 VDC | 0.4A | 0.4A | |
| 250 VDC | 0.2A | 0.2A | |
| Induction (AC) | 125VAC | 3 A | 3 A |
| 250VAC | 3 A | 3 A | |
| Inductive (DC) | 830 VDC | 4 A | 4 A |
| 125 VDC | 3 A | 3 A | |
| 250 VDC | 3 A | 3 A | |
| Surge current | 12 A | 24 A |
Functions and features
Vertical lever enabling reliable transmission of lateral movement
Metal roller for low friction and high mechanical resistance
Smooth operation during oblique and lateral approach
Double spring contact mechanism for long life
Sturdy aluminum alloy and reinforced plastic housing
Water, dust and oil resistant (IP65)
Ideal for
Industrial automation
Conveyor and handling systems
CNC and machine tools
Packaging and assembly lines
Applications with side or angled approach
Package contents
Limit switch CNTD TZ-8105
Why choose this product?
Clear table of rated voltages and currents
High mechanical and electrical durability
Durable industrial design
Reliable operation even in demanding conditions
Proven quality of the CNTD TZ-8 series
