Descrizione

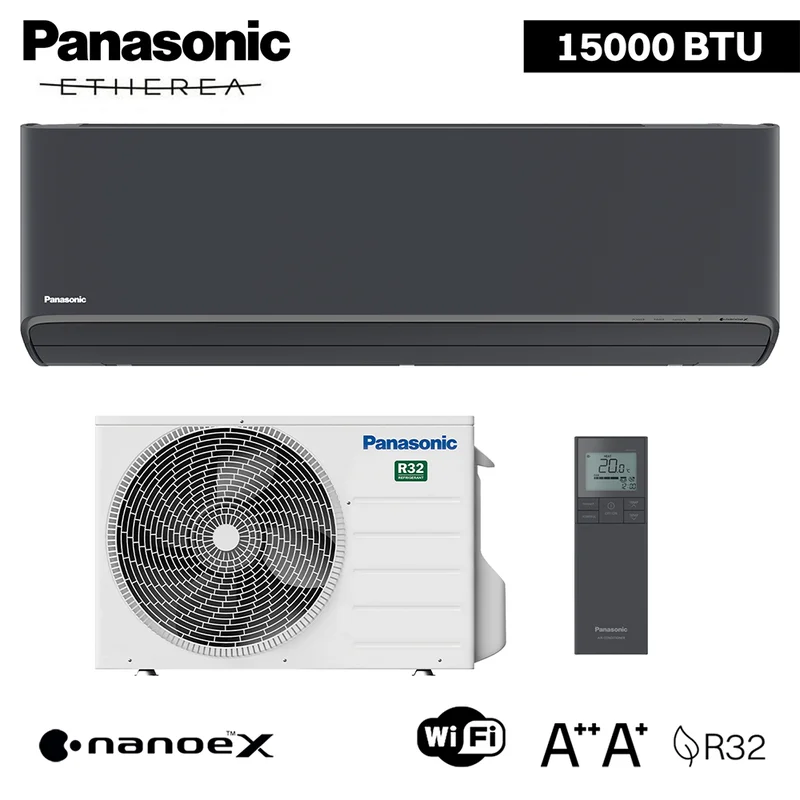

PANASONIC mono ETHEREA C graphite black air conditioner 15000 btu A++/A+ General features:
Integrated nanoe X Mark 3 technology for air purification.
A++ energy class in cooling and A+ in heating.
Ultra-silent operation with Quiet mode.
Aerowings 2.0 for more even air distribution.
Integrated Wi-Fi, compatible with Panasonic Comfort Cloud, Google Home and Alexa.
High-efficiency air-to-air heat pump.
Premium Graphite Black design.
Guaranteed operation down to 20 °C in heating mode.
Model:
Series: Panasonic ETHEREA C
Indoor unit model and Btu: CS-XZ42CKEW-H 15000 BTU
Outdoor unit model: CU-Z42CKE
Type: Air-to-air monosplit heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 7,10 / 4,30
Energy Efficiency Class (Cooling): A++
Energy Efficiency Class (Heating): A+
Seasonal energy consumption kWh/year:
Cooling: 207 kWh/a
Heating: 1172 kWh/a
Performance:
Cooling capacity (kW): 4,20 (0,85 5,00)
Heating capacity (kW): 5,30 (0,80 6,80)
Indoor unit sound pressure MAXMIN (dB(A)):
Cooling: 43 / 31 / 25
Heating: 43 / 35 / 29
Outdoor unit sound pressure MAXMIN (dB(A)):
Cooling / Heating: 49 / 51
Power input cooling (kW): 1,24 (0,24 1,57)
Power input heating (kW): 1,42 (0,19 1,86)
Electrical data:
Power supply ( / V / Hz): 1 / 230 V / 50 Hz
Technical specifications:
Refrigerant gas: R32 0,83 kg (0,56 t CO eq.)
Liquid / gas pipe diameter (inches): 1/4″ 1/2″
Max air flow (Power) m³/min:
Indoor unit: 14,5 / 15,4 (cooling/heating)
Outdoor unit: 29,8 / 30,9
Maximum piping length with standard charge: 7,5 m
Maximum piping length with additional charge: 15 m (addition 10 g/m)
Maximum height difference (outdoor unit above): 15 m
Operating limits (outdoor temperature):
Cooling: 10 ~ +43 °C
Heating: 20 ~ +24 °C
Dimensions and weight:
Indoor unit without packaging (HxLxP) and weight: 295 × 870 × 229 mm 10 kg
Outdoor unit without packaging (HxLxP) and weight: 542 × 780 × 289 mm 31 kg
Product code: KIT-XZ42-CKE-H
