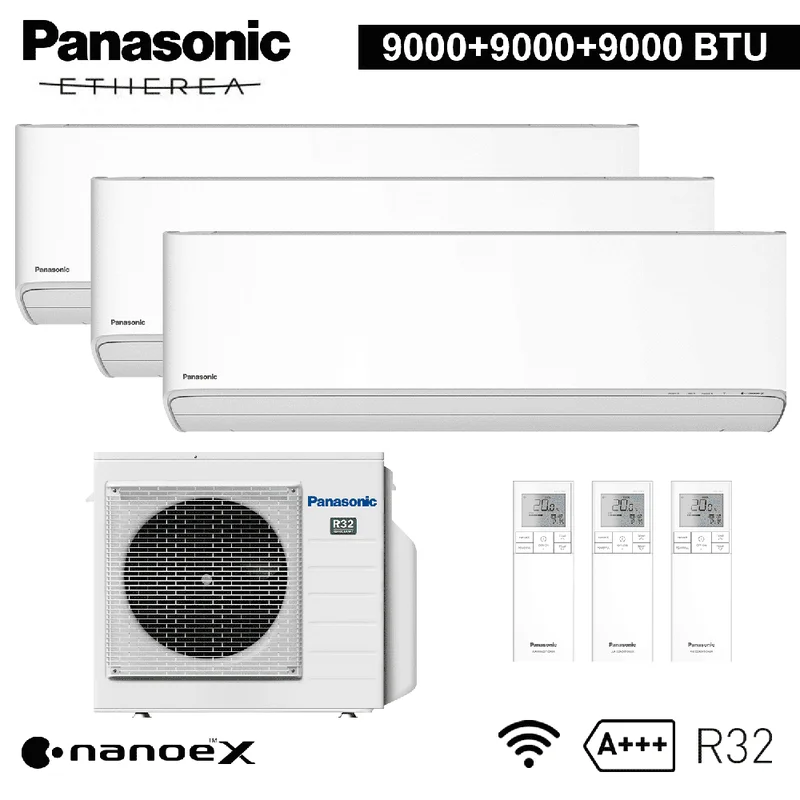

Panasonic ETHEREA R32 trial split air conditioner 9000+9000+9000 btu A+++ WIFI NanoeX General features:
Panasonic Free Multi trial split system with three 9,000 BTU (2.5 kW) Etherea indoor units and one single R32 inverter outdoor unit.
Built-in nanoe X technology for active 24/7 air purification.
Built-in Wi-Fi for remote control via the Panasonic Comfort Cloud app.
A+++ energy class in cooling with high SEER value.
Quiet operation with Quiet and Super Quiet modes.
Elegant Etherea design with matte white finish and Aerowings technology.
Eco-friendly R32 refrigerant gas and high-efficiency R2 Rotary compressor.
As stated in the PDF: NEW! Free Multi system outdoor units – R32 · Up to 5 indoor units with a single outdoor unit.
Model:
Series: Panasonic ETHEREA R32
Indoor unit model and Btu: 3 × CS-Z25CKEW (9,000 BTU)
Outdoor unit model: CU-3Z52CBE
Type: air-to-air multisplit inverter heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 8.70 SCOP 4.70
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 209 kWh/a (cooling) 1609 kWh/a (heating)
Performance:
Cooling capacity (kW): 2.50 × 3 (indoor units) 5.20 kW nominal outdoor unit CU-3Z52CBE
Heating capacity (kW): 3.60 × 3 (indoor units) 6.80 kW nominal outdoor unit CU-3Z52CBE
Indoor unit sound pressure MAX-MIN (dB(A)): 41 / 21 dB(A)
Outdoor unit sound pressure MAX-MIN (dB(A)): 47 / 48 dB(A)
Cooling power input kW: 1.09 kW (min 0.36 max 2.18)
Heating power input kW: 1.38 kW (min 0.32 max 2.50)
Rated current: 4.80 A (cooling) / 6.10 A (heating)
Electrical data:
Power supply ( / V / Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32 charge 1.92 kg (CO eq. 1.296 t)
Liquid / gas pipe diameter (inches): 1/4″ 3/8″
Maximum piping length with standard charge: 30 m
Maximum piping length with additional charge: up to 50 m total (20 g/m beyond 30 m)
Maximum height difference (outdoor unit above): 15 m
Operating limits: Cooling 10°C / +46°C Heating 15°C / +24°C
Dimensions and weight:
Indoor Unit CS-Z25CKEW: 295 × 870 × 229 mm 10 kg
Outdoor Unit CU-3Z52CBE: 795 × 875 × 320 mm 61 kg
Product code: ETHEREA-X-R32-Z252525(52)
