Descrizione

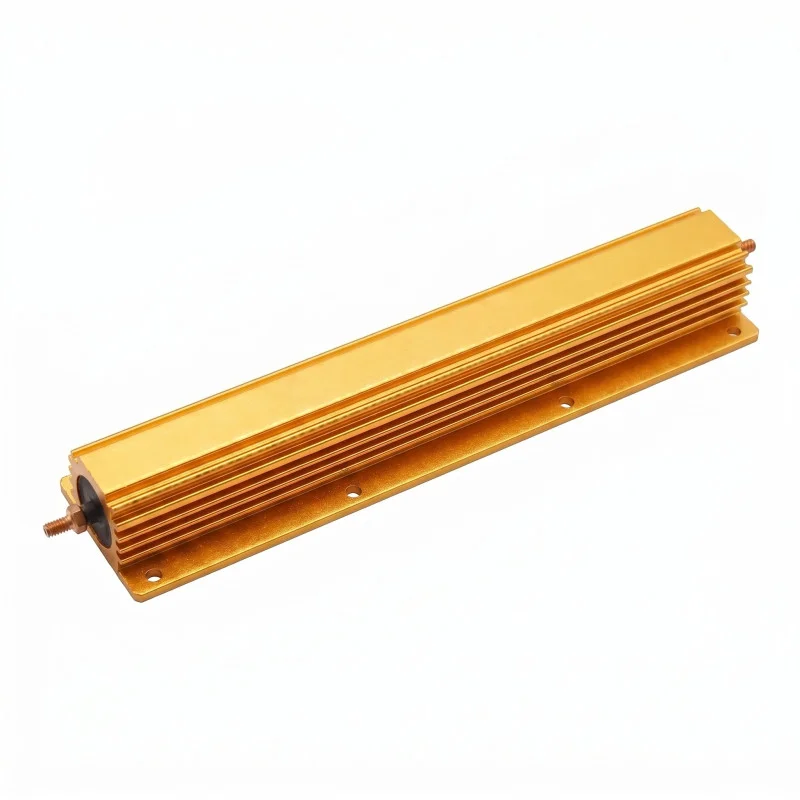

The RX24 series resistor is a high quality and very stable wound resistor capable of dissipating large power in a small space with a relatively low surface temperature. Power is quickly dissipated as heat through the aluminum housing on the dedicated heatsink. The RX24 resistor has mounting holes and is equipped with copper threaded terminals. The resistive element is wound on the substrate and welded to the caps. The coiled rod is then inserted into an aluminum sleeve for optimal stability and reliability.
Maximum performance depends on free air cooling at 25 °C.
| RX24 | L (±1.5mm) | W (±1mm) | H (±1mm) | T (±0.5mm | M (±2mm) | K (±0.5mm) | B (±1mm) | D (±0.5mm) | C (±0.5mm) |
| 500W | 204mm | 73mm | 45mm | 260mm | 174mm | 58mm | M6 | 5.5mm | 5.5mm |
| RX24 | Cooling surface | Rib thickness | Weight | Insulation voltage | Max. overload |
| 500W | 8500cm 2 | 3 mm | 970g | 2000V | 3000V |
