Descrizione

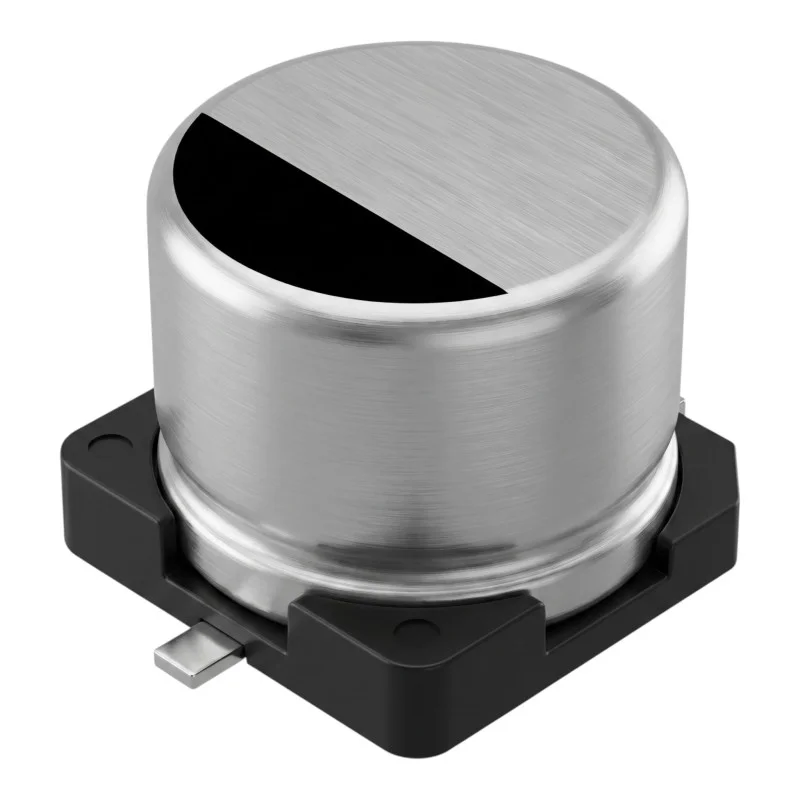

An SMD aluminum electrolytic capacitor is a passive electronic component designed for mounting on printed circuit boards. It is used for filtering, smoothing, blocking, or storing electrical charge in electronic circuits. The range includes multiple variants that differ in capacitance, rated voltage, and case size.

Technical Specifications

Component type: Aluminum electrolytic capacitor.

Design: SMD for surface mount technology.

Construction: Polarized electrolytic capacitor.

Character: Fixed capacitor with a specific capacitance for a particular variant.

Variants: Various capacitances, rated voltages, and case sizes.

Application: General-purpose electronic circuits.

Sales unit: 1 pc.

Functions and Features

Designed for soldering onto printed circuit boards using surface mount technology.

Suitable for use in power supply, filtering, and signal sections of electronic devices.

Polarized design requires observing the correct polarity during connection.

The selection of a specific variant must be based on the required capacitance, rated voltage, and available space on the PCB.

Ideal For

Repairing electronic devices.

Developing and building electronic circuits.

Filtering and smoothing sections of power supply circuits.

Servicing printed circuit boards with SMD components.

Restocking electronic passive components.

Package Contents

1 pc of SMD aluminum electrolytic capacitor in the selected variant.

Why Choose This Product

Individual sale by 1 pc allows purchasing the exact number of components needed for service or production.

SMD design is suitable for modern printed circuit boards with surface mount technology.

Availability of multiple variants allows selecting the component based on the electrical and dimensional requirements of the circuit.

The aluminum electrolytic capacitor is suitable for circuits requiring a polarized capacitive component.

Installation and Operation Guidelines

Before mounting, check the capacitance, rated voltage, case size, and polarity of the selected variant.

Solder the capacitor onto the corresponding SMD pads on the printed circuit board.

When mounting, observe the polarity marked on the component and the PCB.

The rated voltage of the selected variant must not be exceeded.

Installation requires professional handling of electronic components and suitable soldering equipment.

Safety Warnings

Incorrect polarity, exceeding the rated voltage, or faulty wiring can lead to component damage, short circuits, overheating, or device damage.

Do not install or replace the capacitor in a device connected to power.

Before handling, verify that the capacitors in the circuit are discharged.

Use in circuits with hazardous voltage requires professional installation and adherence to safety rules for working with electrical equipment.

Capacitance Capacitor Size Voltage

1500 µF	10 × 10 mm	2.5 V
220 µF	6.3 × 6.9 mm	4 V
470 µF	6 × 6 mm	6 V
22 µF	4 × 5.5 mm	6.3 V
35 µF	4 × 5.5 mm	6.3 V
47 µF	5 × 5.5 mm	6.3 V
100 µF	6.3 × 5.4 mm	6.3 V
220 µF	6.3 × 6 mm	6.3 V
330 µF	6.3 × 7 mm	6.3 V
470 µF	6 × 7 mm	6.3 V
1000 µF	10 × 10 mm	6.3 V
22 µF	6 × 5.4 mm	10 V
33 µF	4 × 5 mm	10 V
47 µF	5 × 5 mm	10 V
100 µF	6 × 5 mm	10 V
220 µF	6 × 5 mm	10 V
330 µF	6.3 × 7 mm	10 V
470 µF	8 × 10 mm	10 V
680 µF	10 × 10 mm	10 V
1000 µF	10 × 10.5 mm	10 V
2.2 µF	4 × 4 mm	16 V
4.7 µF	4 × 5 mm	16 V
10 µF	4 × 5 mm	16 V
22 µF	6 × 4.4 mm	16 V
33 µF	5 × 5 mm	16 V
47 µF	6 × 5 mm	16 V
100 µF	6 × 5 mm	16 V
220 µF	6.3 × 7 mm	16 V
330 µF	8 × 10 mm	16 V
470 µF	8 × 10 mm	16 V
3.3 µF	4 × 5 mm	25 V
4.7 µF	4 × 5 mm	25 V
10 µF	4 × 5 mm	25 V
22 µF	4 × 5 mm	25 V
33 µF	5 × 5 mm	25 V
47 µF	6 × 5 mm	25 V
100 µF	6 × 7 mm	25 V
220 µF	8 × 10 mm	25 V
330 µF	8 × 10 mm	25 V
470 µF	10 × 10 mm	25 V
1 µF	4 × 5 mm	35 V
2.2 µF	4 × 5 mm	35 V
3.3 µF	4 × 5 mm	35 V
4.7 µF	4 × 5 mm	35 V
10 µF	5 × 5 mm	35 V
22 µF	6 × 5 mm	35 V
33 µF	6 × 5 mm	35 V
47 µF	6 × 5 mm	35 V
100 µF	6.3 × 7 mm	35 V
150 µF	8 × 10 mm	35 V
220 µF	8 × 10 mm	35 V
0.1 µF	4 × 5 mm	50 V
0.47 µF	4 × 5 mm	50 V
1 µF	4 × 5 mm	50 V
2.2 µF	4 × 5 mm	50 V
3.3 µF	4 × 5 mm	50 V
4.7 µF	5 × 5 mm	50 V
10 µF	6 × 5 mm	50 V
22 µF	6 × 5 mm	50 V
33 µF	6.3 × 7.7 mm	50 V
47 µF	6.3 × 7.7 mm	50 V
100 µF	8 × 10 mm	50 V
220 µF	10 × 10 mm	50 V
22 µF	6.3 × 7.7 mm	63 V
47 µF	8 × 10 mm	63 V
100 µF	10 × 10 mm	63 V
10 µF	8 × 7 mm	100 V
22 µF	8 × 10 mm	100 V
33 µF	10 × 10 mm	100 V
47 µF	10 × 10 mm	100 V
