Descrizione

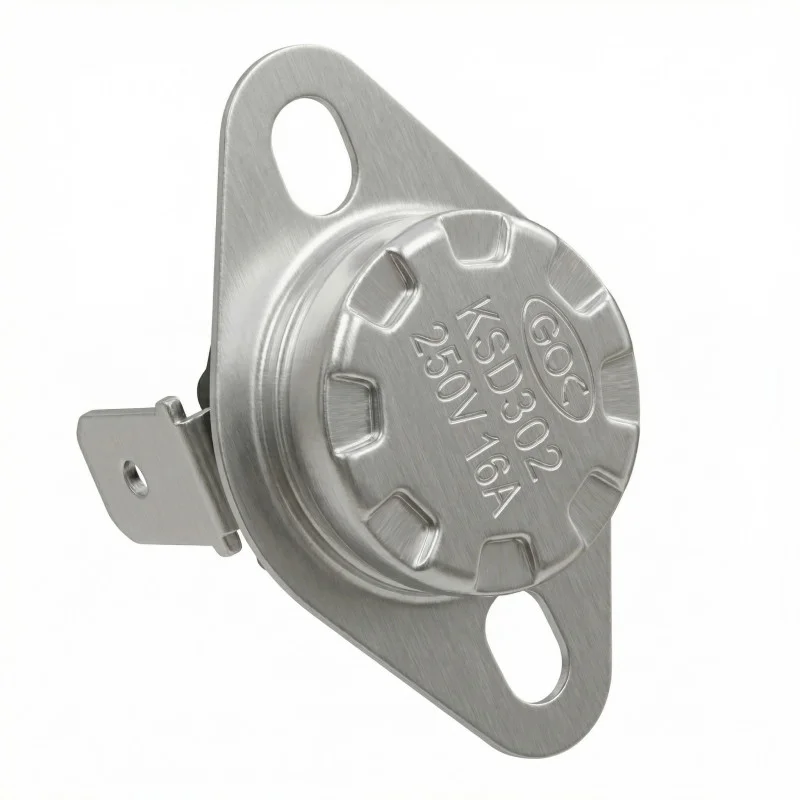

Fully encapsulated thermostat in industrial quality. Opens when action temperature is reached. At lower temperature the thermostat is closed.
Circuit: NC (normal closed)
Switching temperature: by variant
Automatic reset
Operating voltage: max. 250V AC
Current: max. 16A
Circuit resistance: 50 mOhm
Insulation resistance: 100 MOhm
Base material: ceramic
Terminal orientation: R (90°)
Size: 33x12mm
Height: 20g
